Underseat JL Audio Dual 12-inch Subwoofer Enclosure with Loaded Amplifier Rack
Built per truck — select yours
Pre-tuned package family

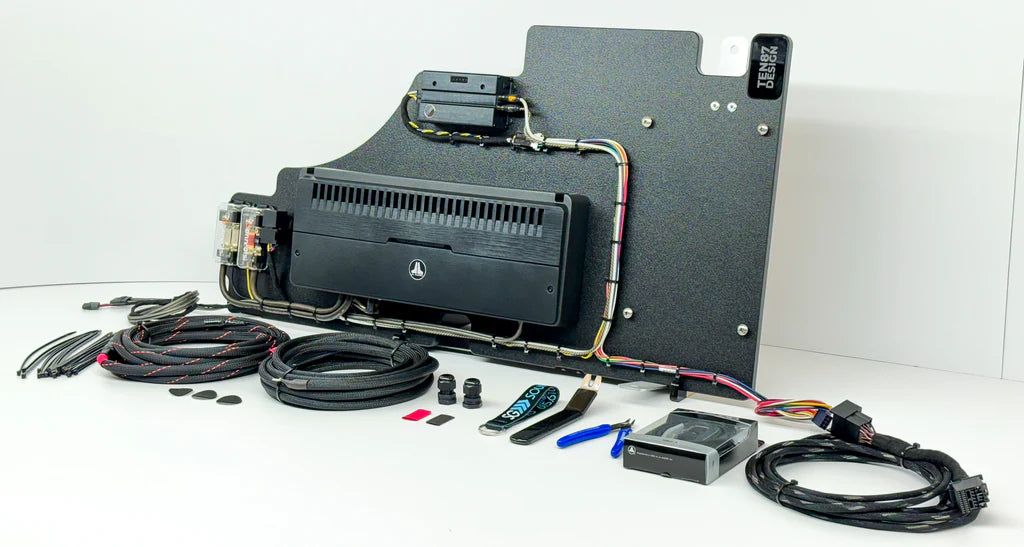

Underseat JL Audio Dual 12-inch Subwoofer Enclosure with Loaded Amplifier Rack

We build this package per truck — the amp variant, the components and the price on this page follow the truck you choose.

From $3,800 Final price is your truck’s exact build — select your vehicle.
Talk to a builder · 615-610-1413
5.0★
22 reviews
Checking your vehicle…

Select your truck to see your exact package and price

These packages are built per truck — the components, the amp variant, and the price are specific to your exact vehicle. Tell us what you drive and this page shows the one build we ship for it.

Built for your exact truck Pre-tuned plug & play Hand-built in TN In-house support
The package · Performance tier

How it sounds. In your truck.

Here's what it's great at, what to know before you buy, and where it lands in our lineup.

Tier
Performance
Amplifier power
1,000 W RMS
Where it lands in our lineup
  1. Essential
  2. Performance
  3. Audiophile
  4. Flagship

Four things we listen for

Hover or tap a measure

Build your complete system.

Your system
The system builder
Build your complete system

Enclosure, amp rack and treatment, priced together.

01 EnclosurePick your truck
02 SubwooferTo pick
03 Amp RackFrom $980
04 Sound TreatmentFrom $797
1 of 4 chosen
Build your system
Straight answers

The questions we hear most.

The questions each component gets asked on its own page — grouped so you can read only the part you care about.

This package

2 questions
What’s included in this package?
  • JL Audio Stealthbox Subwoofer Enclosure
  • JL Audio Loaded Subwoofer 1000wrms Amplifier Rack
  • JL Audio Loaded Subwoofer 1000wrms Amplifier Rack
Is an amplifier included?

Yes — this package includes its loaded amplifier rack:

  • JL Audio Loaded Subwoofer 1000wrms Amplifier Rack for Ford 2023+ Super Duty and 2024+ F-150 Trucks
  • JL Audio Loaded Subwoofer 1000wrms Amplifier Rack for Ford F-Series Vehicles (All Factory Systems including B&O Unleashed)

JL Audio Stealthbox Subwoofer Enclosure

Asked on this part’s own page · for 20092026 Ford F-Series SuperCrew Truck
7 questions
Will it fit my truck?

Pick your truck in the vehicle selector at the top of the page and it shows whether this Stealthbox fits. Questions about your truck? Call or text 615.610.1413.

Does the rear seat still fold and recline?

Yes. The Stealthbox sits under the rear seat, and JL says folding and reclining are unaffected. It takes the place of the factory under-seat storage bin, so you lose that storage.

What has to come out?

Flip the seat bottoms up and remove the under-seat storage bin if your truck has one, the factory subwoofer if your truck has one, and the factory plastic divider panel if equipped. The seat itself stays in.

How does it mount?

With the side and center brackets JL includes. They bolt to the factory holes in the seat brackets with M6 screws and Vibra-Tite thread locker, both included. On trucks without the factory divider panel, tap those holes with an M6 tap first. JL rates the install 1 of 5, about an hour.

What amplifier do I need?

A mono amp that is stable at 2 ohms; the box is wired to 2 ohms and handles 800 watts RMS. Our JL Audio 1000-watt RMS loaded amp racks pair with it. Run the amp's power and ground to the battery. The box has a bare wiring pigtail, not a plug, so connect your speaker wire to it.

I have the B&O system. Will the bass hold up at high volume?

Not with the box alone: the factory B&O and B&O Unleashed systems pull the bass back as you turn the volume up. Our Ford B&O subwoofer harness with Fix Roll-Off feeds your amp a steady signal so the bass stays. Pick the 8-speaker or Unleashed version to match your truck.

Is this the real JL Audio Stealthbox?

Yes. We buy it from JL Audio and ship it as it comes from JL, with both subwoofers installed. It is JL's current version of this Stealthbox, part number 010-03946-00.

JL Audio Loaded Subwoofer 1000wrms Amplifier Rack

Asked on this part’s own page · for Ford 2023+ Super Duty and 2024+ F150 Trucks
8 questions
Does this include a subwoofer?

No. This is the amplifier rack; you add the subwoofer and enclosure, and most owners pair it with one of our under-seat enclosures or the JL Audio Stealthbox. The RD1000/1 makes 1,000 watts RMS into 2 ohms and 600 into 4 (JL's ratings at 14.4 volts). JL does not recommend loads below 2 ohms, so plan on a 2-ohm final load.

Where does it plug in?

On B&O trucks the T-harness plugs in between the factory amplifier and its connector, male to female, and the factory amplifier stays in place. That amp is hidden behind the carpet panel on the back wall, toward the passenger side. On trucks without B&O a plug goes in at the radio and an extension harness runs back to the rack. No factory wires are cut, and your door and dash speakers stay as they are.

Does it fix the B&O bass roll-off?

Yes. As you turn a factory B&O system up, it turns the subwoofer signal down to protect the factory sub. The Kicker KEYLOC on this rack is programmed to correct for that, so the bass keeps up with the volume.

Is it tuned before it ships?

Yes. We load every rack in one of our trucks and tune the KEYLOC, the amplifier and the crossover with test tools, not by ear. Leave the gain on the amp and the KEYLOC alone, and use the RBC-1 knob to turn the subwoofer up or down.

Does it need drilling?

Not for the rack. Its feet bolt into factory threads in the floor and its top bracket bolts to the seat-latch bracket. The power and ground wires run from the battery under the truck and come into the cab through two 3/4-inch holes in the floor, sealed with the two watertight glands in the box. On B&O trucks the block-off plate also needs small 1/8-inch pilot holes for its screws.

What is the red and black lead off the relay for?

It powers the LED lights in our subwoofer enclosures, switched on and off with the system by a relay on the rack. If your enclosure has no LED lights, such as the JL Audio Stealthbox, leave it unconnected.

How long does the install take?

We don't offer installation. Everything is plug-and-play and comes with step-by-step install videos; most customers install it themselves or use a local car-audio shop. Call or text us with any install question.

Which option do I choose?

The one that matches your factory audio: B&O, B&O Unleashed, or no B&O. Then select your truck at the top of the page to confirm the fit. Not sure which system you have? Call or text 615-610-1413 and we will check it with you.

Don’t see your question? 615-610-1413 — a human will answer.
