Ford Non-Amplified Factory Stereo T-Harness - 2015-2020 Plug-In Stereo & Sub Integration
Plug-in T-harness for 2015-2020 Ford F-Series and other pre-2021 non-amplified Fords. Hand-built in Nashville with OFC copper, soldered 4-channel Straight Wire RCA tips, and fully reversible installation.
SKU: FordTHarness-Complete-RCA
Plug-in, by design.
The clean, plug-in way to add an amp to a Ford that shipped with the base (non-amplified) factory stereo. Made for Ford's round ACM connector — no splicing, no factory damage, and it unplugs if you ever sell the truck.
Full specifications
- Signal Level
- High-Level (factory speaker-level)
- Complete Variant Output
- 4-channel (Front L/R + Rear L/R)
- Wire
- 100% OFC copper, TechFlex sleeved
- Connector
- Ford pre-2021 round ACM (plug-in, no cutting)
- Sub Only Variant Output
- Stereo L/R pair to sub amp — factory speakers untouched
- Factory EQ Handling
- ForSCAN flash (free) or KeyLOC variant
- Preserves Factory Features
- Chimes, phone, Sync 2/3, SWC all preserved
- Reversibility
- Fully reversible — unplug to restore stock
The rest of the route, in one cart.
One part from each DIY step that fits your vehicle. Open any of them to choose its options and add it to your cart without leaving this page.

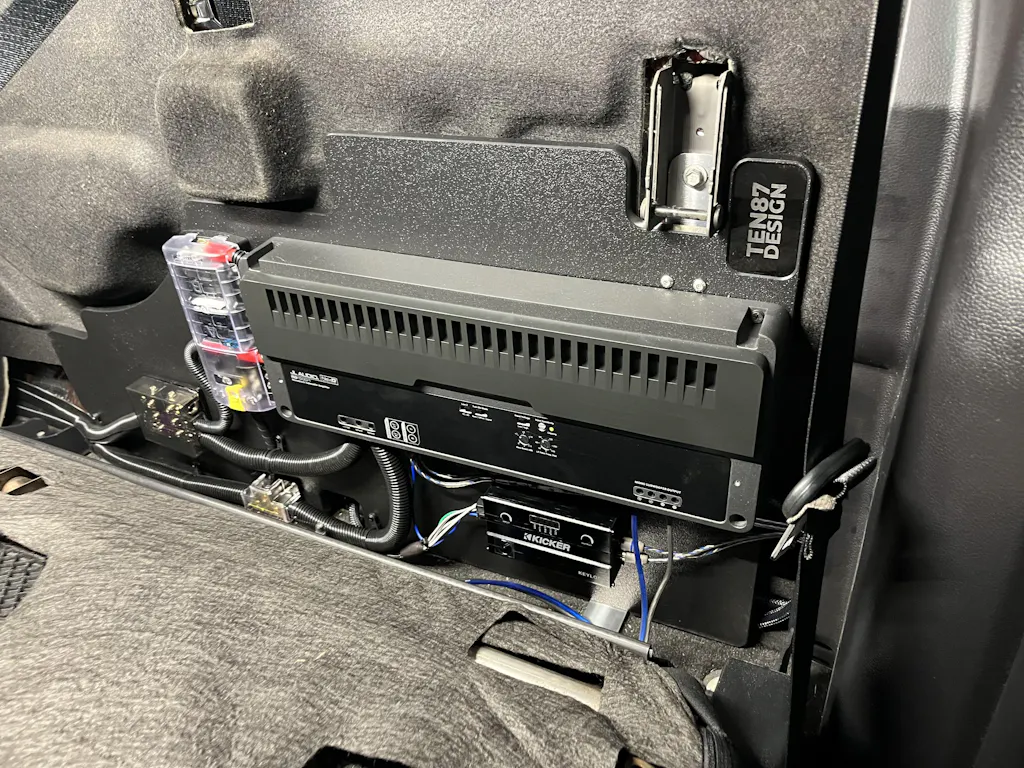

Mounting amplifiers, a processor and distribution behind the driver-side rear seat: it bolts to three factory points, with no drilling.
Owners who need one compact amp or a DSP on the driver side without taking up the whole area behind the rear seat.
Owners running a 5-channel amp or micro amplifiers who want a clean, secure mount behind the rear seat.
Mounting a compact amplifier or processor behind the passenger-side rear seat, with no drilling and the factory subwoofer left in place.
2015-2026 Ford F-150 and Super Duty SuperCrew owners who want a hidden, clean amp install in the underseat storage area. Not for trucks with Pro Power Onboard.
For owners who need the whole back wall: 53.8 inches for several amplifiers, with room behind for distribution blocks, relays or a DSP.
20 ft of power + 20 ft of ground in 100% OFC Kicker wire, fused at the battery — 1/0, 4 or 8 gauge.
Owners of Ford, Mazda, and Lincoln vehicles upgrading factory 6.5-inch speakers to aftermarket drivers
Owners of Ford, Lincoln, Mazda, and Mercury vehicles with factory 6x8-inch oval speakers upgrading to 6.5-inch round aftermarket drivers
Ford truck owners upgrading factory speakers to premium aftermarket 6.5-inch, 6x9-inch, or 8-inch drivers
F-150 and Super Duty owners installing aftermarket tweeters from a 2-way or 3-way component speaker kit
2021+ Ford truck owners with the non-amplified audio system installing aftermarket tweeters
2021+ Ford F-150, Lightning, and Super Duty owners with B&O audio upgrading factory midrange speakers
Closing the factory access holes behind your door speakers
Closing the factory access holes behind your door speakers
Trucks with B&O audio - required when removing the factory subwoofer
2009-2014 F-150 SuperCrew and SuperCab front door speaker upgrades
2015-2020 F-150 SuperCab and 2017-2022 Super Duty SuperCab door speaker upgrades
2018-2023 Ford Expedition and Expedition Max door speaker upgrades - all trims and audio packages
Two Ten87 Design 6.5-inch subs in a ported box that hides behind the rear seat, with the compact amp rack that fits beside it. Bring your own amp.
Kicker's own carpeted truck box with two 10-inch L7T subs installed, made to sit under the rear seat.
Two 6.5-inch subs in a ported box behind the rear seat — for your own amp, and the seat still folds up.
Genuine JL Audio Stealthbox: two 12-inch TW3 subs in a sealed box that bolts in under the rear seat.
Two Ten87 Design 6.5-inch subs in a ported box that hides behind the rear seat. Bring your own amp.
Custom-fit subwoofer enclosure for the Ford F-Series (2009–2026) — tight, hidden bass built around your Arc Audio.
Everything customers actually ask.
The questions we get most on wiring and harnesses - answered straight. Not sure if yours is here? Call, and a human answers.
One year, on everything we sell. Every item is covered for one year from delivery. If something fails in that first year, we make it right. Questions about a claim? Call us — a real person handles it with you.
Asked by truck owners
1 answered by our teamSo when no load is present, the chimes will be sent to the factory gauge cluster instead of the speaker outputs. You can add 20-ohm loads to our harness pretty easily if your gear does not have a load built-in already.
Answered by the SGS team · Nov 2022
How they hold up once they're installed.
I have a 2018 Ford F150 with the T-harness and the sounds good stereo amp rack. Super clean set up for both. 5 stars!!! Recommend to anyone.
Bought the custom T-Harness for my son’s 2018 F-150 Supet Crew along with the custom amp plate for behind the rear seat! Both products were meticulously made, and worked flawlessly! During the install, I ran into a couple self-inflicted errors of which the customer service I received was absolutely impeccable and they helped me discover issues that had nothing to do with these products. I can’t say enough good about the products and the customer service that I received… I highly recommend this company not only for the products but for the customer service! My son‘s truck turned out amazing!
Very high quality. Made easy work of adding a pair of amps to my factory system to drive the speakers and an added subwoofer. I ran this from my dash to a JL FiX 86 which corrected and cleaned up the output from the factory radio.
So pros got this for my truck so I can still use the back up camera android etc etc etc WORKS GRREEEEAAAT everything works as intended cabling is clean and long enough to reach your woofer in the back with a supercrew with 4 feet to spare! The labels for output and input are an amazing touch i waited about a week for my unit to get shipped out but not complaining there just more of heads up for folks who are gonna be impatient as the line is worth the wait and customer service hit me up said hey if you have questions hit us up and I did and they answered all of my stupid questions so kudos to the team for putting up with my BS
Some feedback:
The output and input collars are super appreciated I'd love to a collar denoting positive and negative(ground if you want to be technical) and possibly a custom collar labels if the customer specifys a specific way they are going to use the harness say for instance loading it into LC5I pro since I'm assuming that the primary customers are folks who are DIY and or newer to the whole vehicle electrical thingys
Outside of that i apreciate yall
This makes the install so easy! Super clean and very well crafted. Cannot recommend enough!
Works great. Connected to 12.1” screen from GUA. Harness is a must have solution for the 2018 F150 non-amplified vehicles as the normal connector at the left rear of the cab doesn’t always have power or line signal wired to it.
Made my install so much easier, faster, and didn't even have to mess with hooking up a loc. My system turn out great, sounds awesome, and looks totally factory. Thanks guys.
Great quality, and well made. Will definitely shop there again.
The T harness looks extremely clean. I’m doing my first sound system install and keeping the factory head unit. This T harness made my life way easier and was worth the money.
I have been making harnesses for a very long time. This one, premade, made the install go that much faster. Fantastic build quality everything fit together perfectly. This single piece most likely saved me 3-4 hours of soldering and heat shrinking the solder joints. I would spend the money again in a n instant.
Thank you Sounds Good Stereo for your well made quality custom harness which made my installation easy. Found your company researching and am very happy I found you! From ordering online to several text and email follow up communications you have exceeded my expectations. Hard to find excellent quality and customer service now a days and I appreciate you! and your business! Will not hesitate to do business again. Thank you! Tracy
I purchased the T-Harness with RCA’s and the quality of the harness and the wire wrapping were amazing. I also purchased the full length 0/1 power and ground and together they took my DIY upgrade/install to the professional level. I had to wait a bit for the harness which was not communicated to me initially, but they were helpful and answered some questions I had. I would buy it again, so 5 stars.
Just FANTASTIC! PERFECT IN EVERY WAY! ! !
This harness has loopback for the door speakers? Does it have power ground remote for a LC5ipro? If not can I request a one ?
2016 F150 non Sony
It is a loopback that has the four door speakers in the harness. When using this harness, make sure you either use ForSCAN to turn off the EQ or use Kicker KeyLOCs to fix the factory signal. You can use the LC5, but you must fix the EQ since the LC5 is only a converter, not s DSP/signal restoration device.
For the power/ground, you must run this striaght to the battery, it's not recommended to use the cab for ground since these trucks are glued together which can create high resistance in the ground to your electronics.
I have 2020 ford expedition xlt base model I don’t have no speaker packages or anything like . I want to add An amp for highs and an amp for base will this t harness work for my expedition? All the comments I’ve seen they had F-150 .
Yes, it's the same for the Expedition (Same factory ACM).
Will this work for a 2019 f150 non amp with 8.4 screen , and ran directly to mosconi or museway dsp....
Exactly, this is the harness you need
I understand the non amplified radio in a 2020 Ford F150 requires passive load generators on the radio outputs when adding an amplifier.
Does this harness include those? Is it configured to accept them?
Hey James, so when no load is present, the chimes will be sent to the factory gauge cluster instead of the speaker outputs. You can add 20-ohm loads to our harness pretty easily if your gear does not have a load built-in already.
Will this work for a 2019 F150 Lariat stock stereo. Looking to hook up the Kicker Key 200 for the door speakers, A-pillar tweeter and the kicker key 500 to two shallow mount 10's under the back seat.
Yes it will
I have a 2015 f-150 and will be installing aftermarket components speakers in all 4 doors along with a 4 channel aftermarket amplifier. I believe I have a non amplified system ( not sure have to check) is there harness that you make that will work for my installation?
Yes, this is the harness you need
Not sure what'll fit? Just call.
Tell us your vehicle and factory system - we'll confirm the right harness before you order.
