Factory A²B Stereo Interface for Ford B&O — NAV-TV ZEN-A2B Plus (NTV-KIT1033)
Takes the place of the rear B&O amp and hands your amplifiers six clean analog channels.
SKU: NTV-KIT1033
Plug-in, by design.

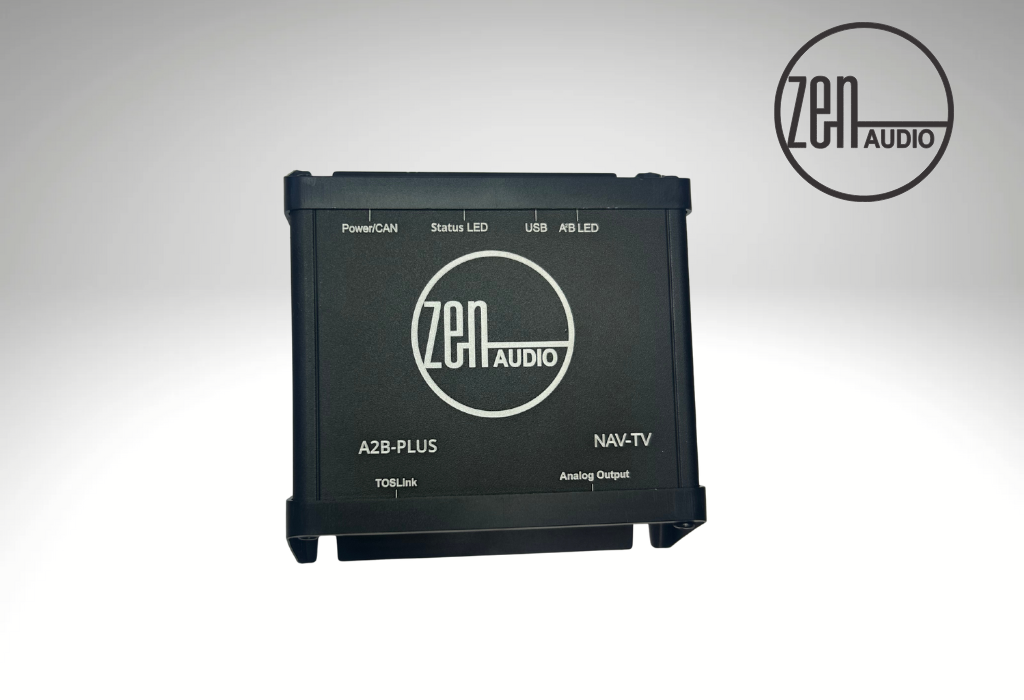

The ZEN-A2B Plus takes the place of the factory B&O amplifier behind the rear seat. It reads the digital audio the radio sends over the A²B bus and turns it into six analog channels on RCA — front left/right, rear left/right, center and subwoofer — plus a TOSLink optical output, ready for the amplifiers you add. NAV-TV states the output is flat, with no factory time delay or EQ, so there is nothing to sum or correct. The factory radio keeps control of volume, fade and balance, bass, mid and treble, and chimes and Bluetooth calls keep working. The radio module in the dash stays in, and NAV-TV says the Plus can also process the speakers it drives.
Check before you buy
Needs the factory B&O system with its rear amplifier: the ZEN takes that amp's place. On a 2021-2023 F-150 with the factory B&O Unleashed system, also add our Unleashed rear-speaker harness to reach the factory rear speaker wiring. Not sure? Call or text 615-610-1413.
Full specifications
- Adapter Type
- A2B to RCA
- Factory Amp
- Removed
- Analog Outputs
- 6 channels
- Optical Out
- TOSLink
- Output Level
- 5 V RMS
- S/N Ratio
- 114 dB
- Amp Turn-On
- Built in
- Sold As
- Interface kit
The rest of the route, in one cart.
One part from each DIY step that fits your vehicle. Open any of them to choose its options and add it to your cart without leaving this page.

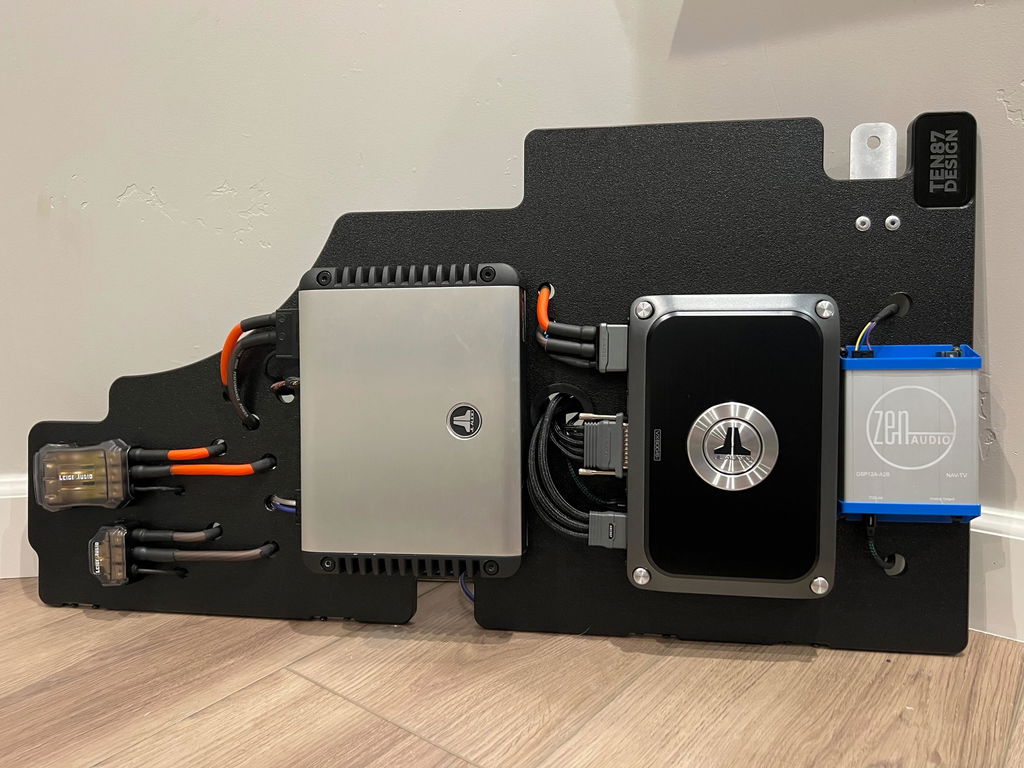

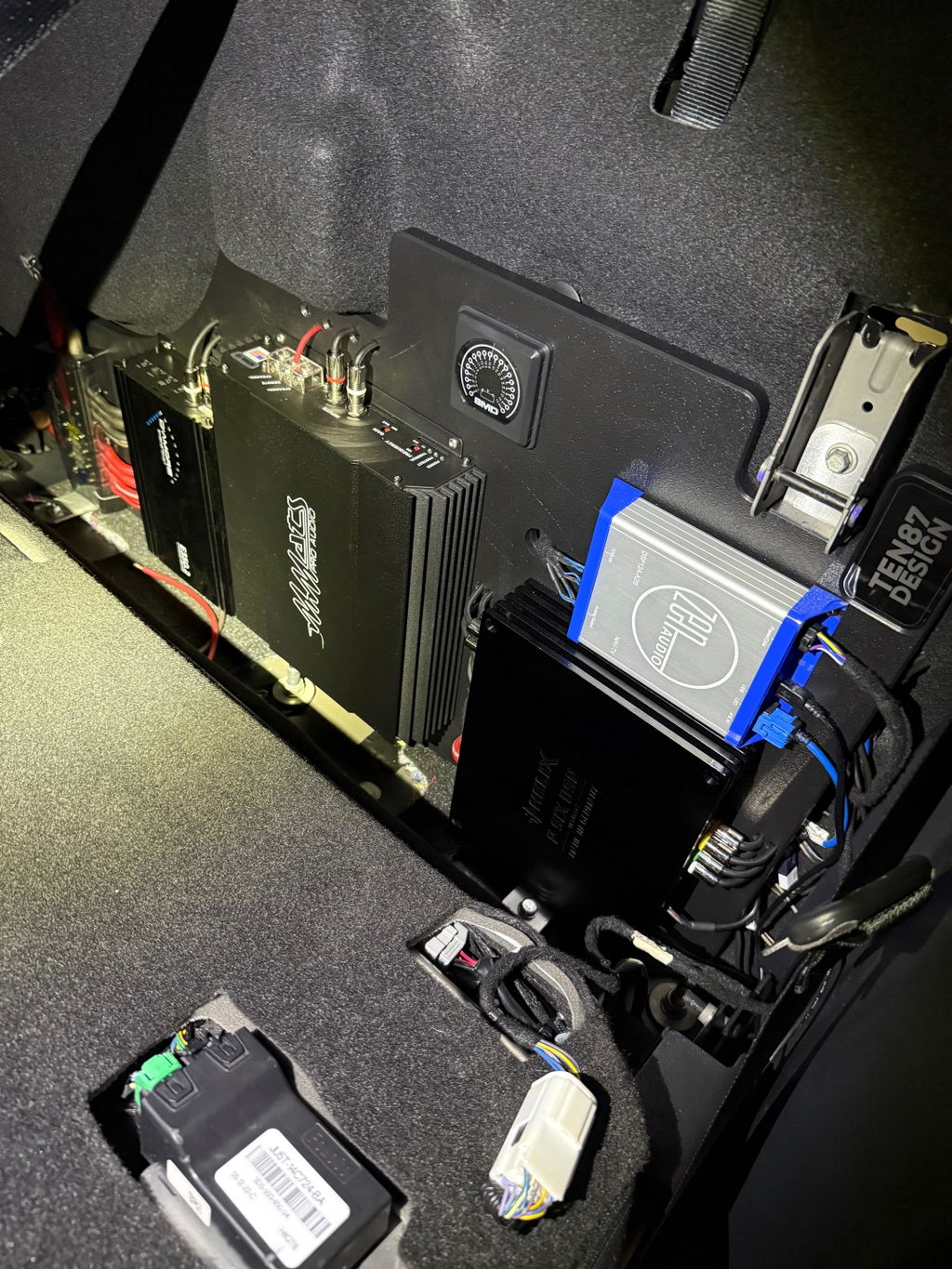

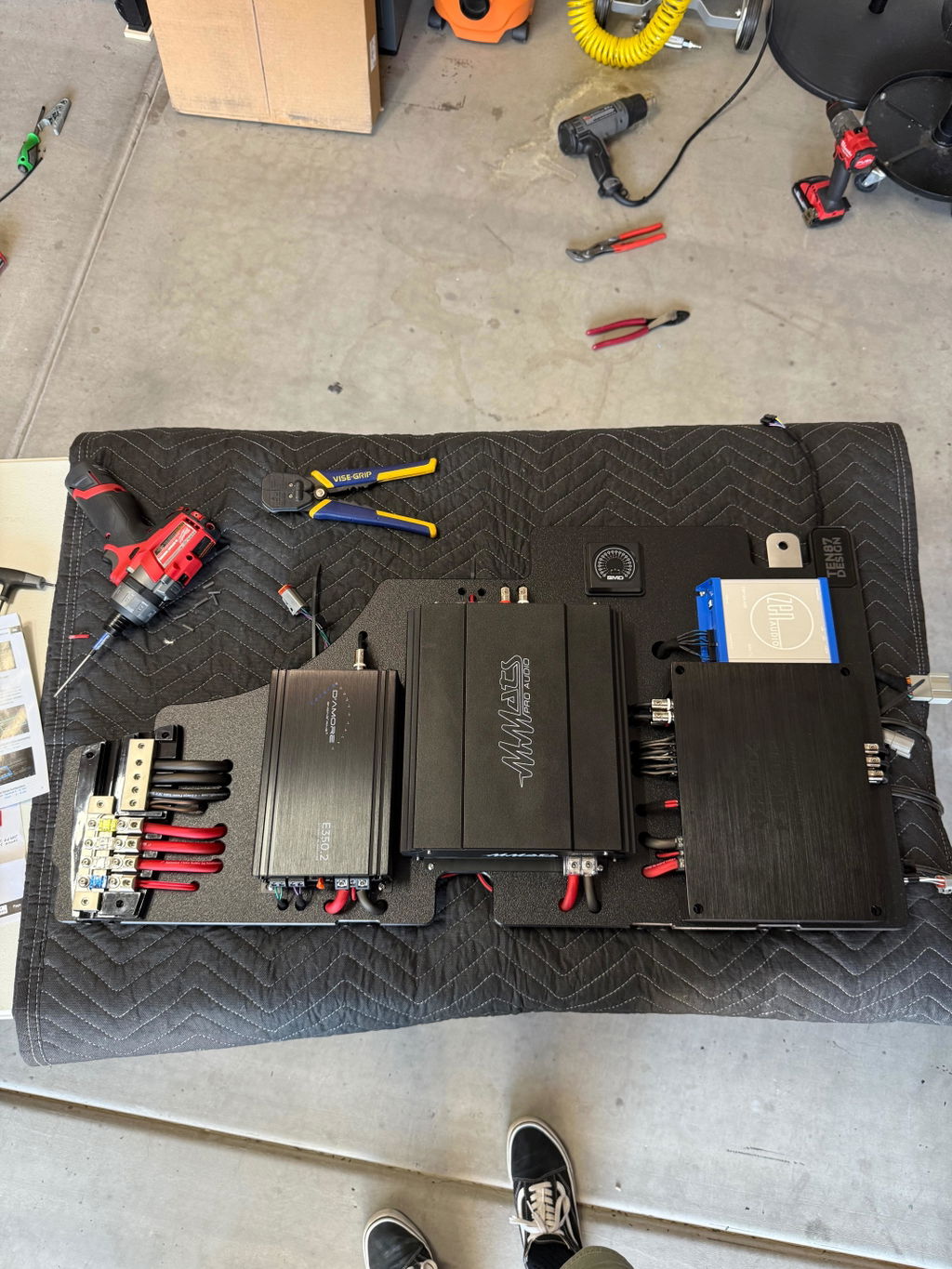

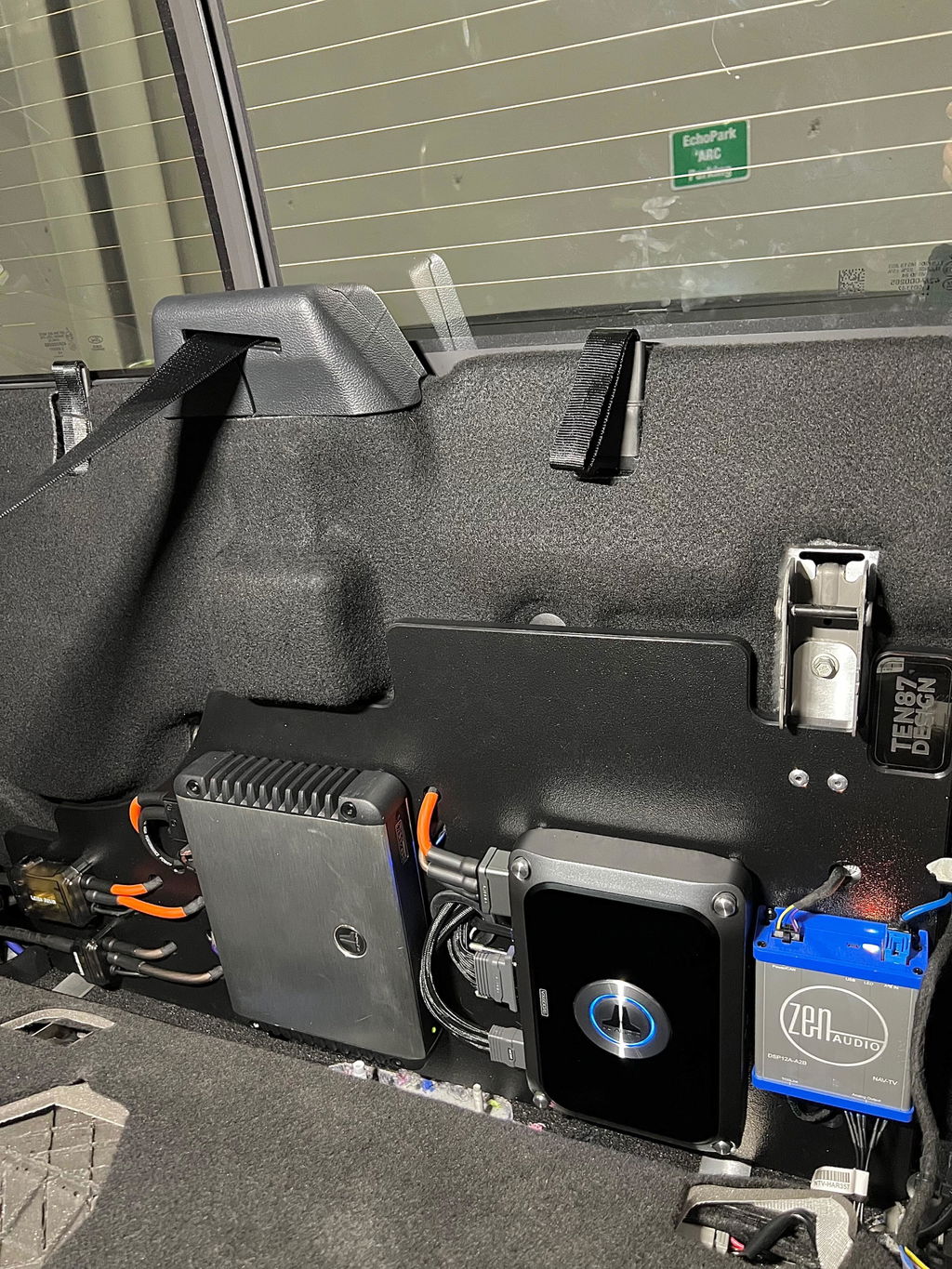

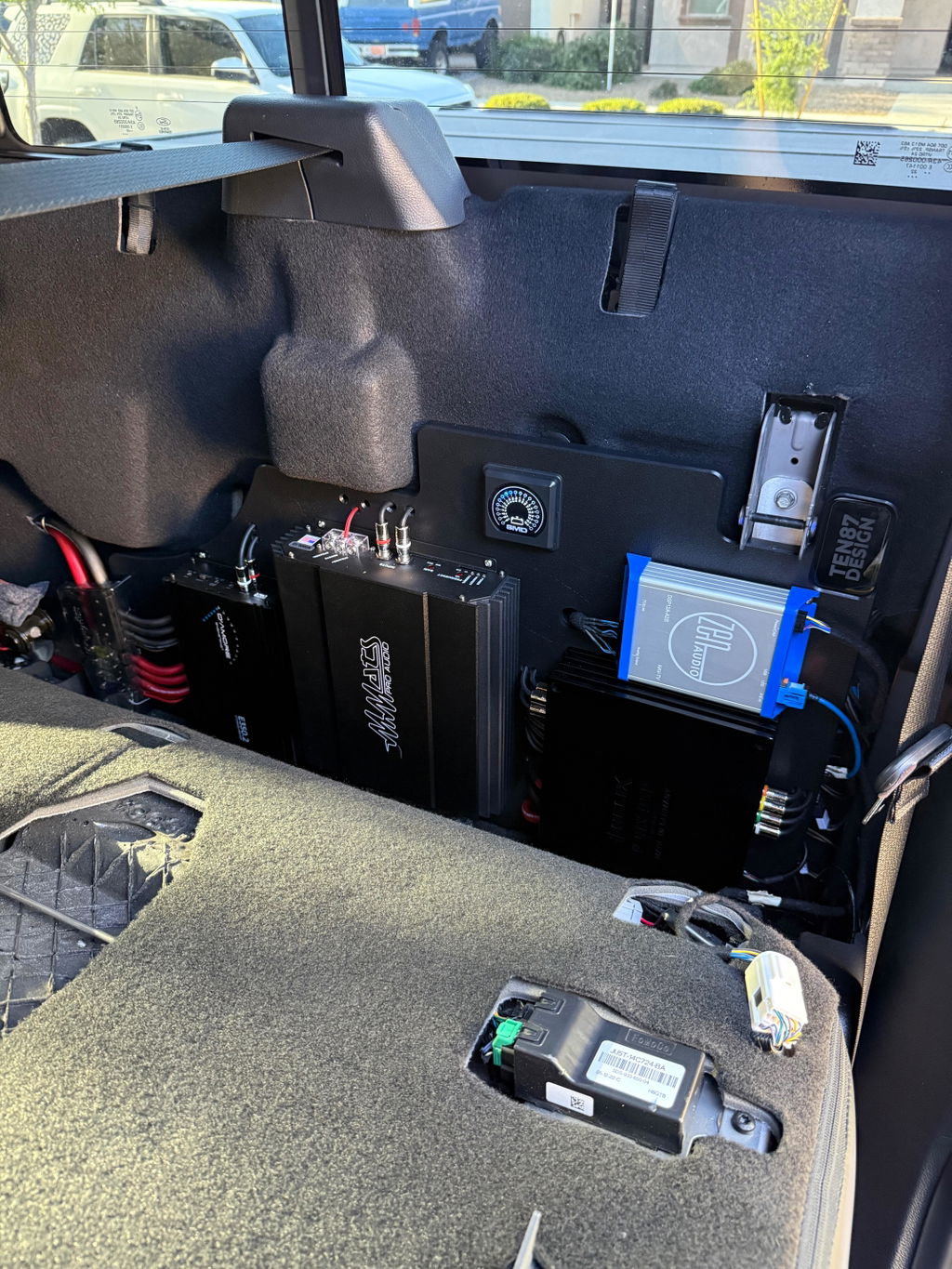

Mounting amplifiers, a processor and distribution behind the driver-side rear seat: it bolts to three factory points, with no drilling.
Owners who need one compact amp or a DSP on the driver side without taking up the whole area behind the rear seat.
Owners running a 5-channel amp or micro amplifiers who want a clean, secure mount behind the rear seat.
Mounting a compact amplifier or processor behind the passenger-side rear seat, with no drilling and the factory subwoofer left in place.
2015-2026 Ford F-150 and Super Duty SuperCrew owners who want a hidden, clean amp install in the underseat storage area. Not for trucks with Pro Power Onboard.
For owners who need the whole back wall: 53.8 inches for several amplifiers, with room behind for distribution blocks, relays or a DSP.
20 ft of power + 20 ft of ground in 100% OFC Kicker wire, fused at the battery — 1/0, 4 or 8 gauge.
Owners of Ford, Mazda, and Lincoln vehicles upgrading factory 6.5-inch speakers to aftermarket drivers
2021+ Ford Bronco owners upgrading factory kick panel speakers to aftermarket 6.5-inch drivers
Owners of Ford, Lincoln, Mazda, and Mercury vehicles with factory 6x8-inch oval speakers upgrading to 6.5-inch round aftermarket drivers
Ford truck owners upgrading factory speakers to premium aftermarket 6.5-inch, 6x9-inch, or 8-inch drivers
F-150 and Super Duty owners installing aftermarket tweeters from a 2-way or 3-way component speaker kit
2021+ Ford truck owners with the non-amplified audio system installing aftermarket tweeters
2021+ Ford F-150, Lightning, and Super Duty owners with B&O audio upgrading factory midrange speakers
Closing the factory access holes behind your door speakers
Closing the factory access holes behind your door speakers
Trucks with B&O audio - required when removing the factory subwoofer
2009-2014 F-150 SuperCrew and SuperCab front door speaker upgrades
2015-2020 F-150 SuperCab and 2017-2022 Super Duty SuperCab door speaker upgrades
2018-2023 Ford Expedition and Expedition Max door speaker upgrades - all trims and audio packages
Two Ten87 Design 6.5-inch subs in a ported box that hides behind the rear seat, with the compact amp rack that fits beside it. Bring your own amp.
Kicker's own carpeted truck box with two 10-inch L7T subs installed, made to sit under the rear seat.
Two 6.5-inch subs in a ported box behind the rear seat — for your own amp, and the seat still folds up.
Genuine JL Audio Stealthbox: two 12-inch TW3 subs in a sealed box that bolts in under the rear seat.
Two Ten87 Design 6.5-inch subs in a ported box that hides behind the rear seat. Bring your own amp.
Custom-fit subwoofer enclosure for the Ford F-Series (2009–2026) — tight, hidden bass built around your Arc Audio.
Everything customers actually ask.
The questions we get most on wiring and harnesses - answered straight. Not sure if yours is here? Call, and a human answers.
One year, on everything we sell. Every item is covered for one year from delivery. If something fails in that first year, we make it right. Questions about a claim? Call us — a real person handles it with you.
Asked by truck owners
1 answered by our teamIf you are upgrading the complete system, the Zen is mandatory. A LC7 will not correct the factory signal from the amplifier. You could technically fix the signal with a Mosconi Aerospace DSP, but it's not something most consumers/shops are trained for. Use the ZEN
Answered by the SGS team · Dec 2022
Step by step for your vehicle.
Where install steps exist for your exact part, they're below - with the tools you'll need.
-
Find the rear factory B&O amplifier and, with the vehicle off, unplug every connector from it.
-
Set the ZEN's DIP switches for your vehicle before it gets power.
-

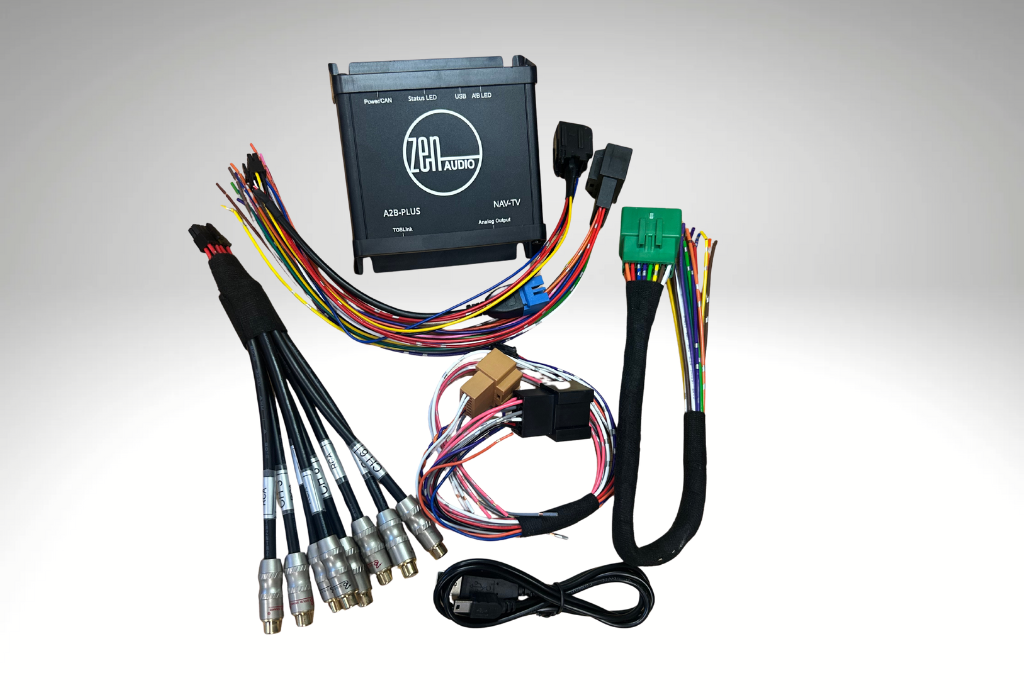

Plug the factory A²B connector into the blue A2B plug on the ZEN's Ford harness, then plug the harness into the factory amplifier connectors.
-
Cut the ZEN harness's power and ground leads off the factory plug and run them to your amplifiers' distribution block with a 5–10 A inline fuse.
-
Ground every amplifier directly to the battery (1 ohm or less), then connect the RCAs: front, rear, center and subwoofer.
-
Wire the speaker leads from the ZEN's Ford harness to your amplifier outputs.
-
Connect the ZEN's blue turn-on lead to your amplifiers.
-

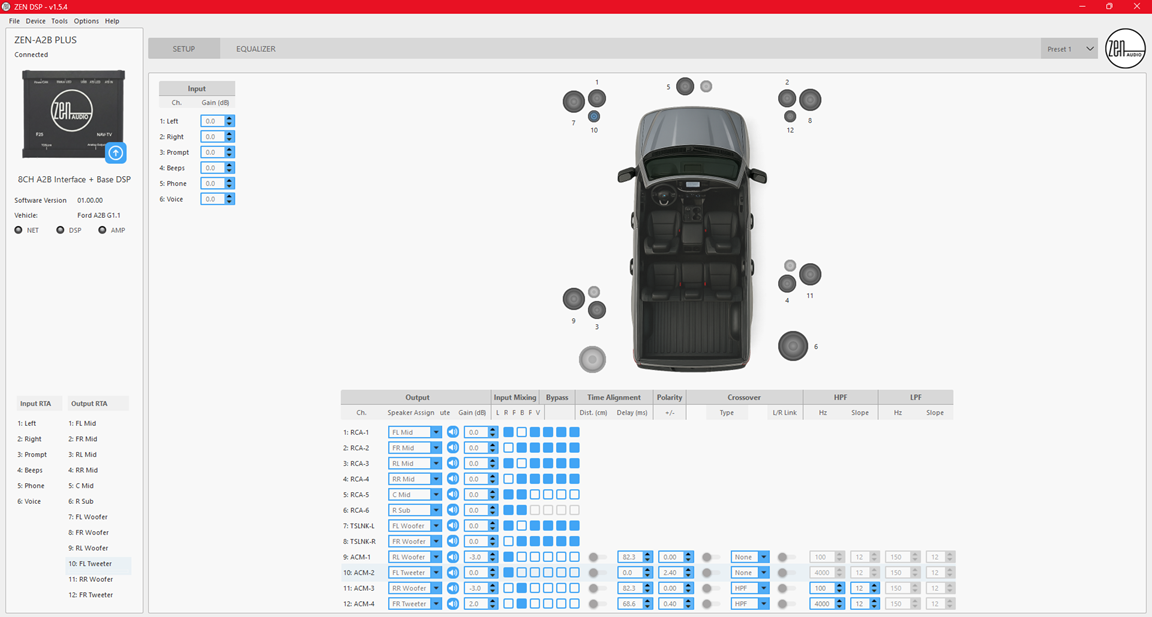

Power up, connect the ZEN DSP app over USB-C and set chime and output levels.
-
No chimes? Turn the ignition off, close every door and let the vehicle sleep about 10 minutes, then test again.
How they hold up once they're installed.
Zen A2B is the way to go. Installed in my 22’ Raptor. Definitely suggest buying from the Sounds Good guys because they’re good dudes with good customer service and answered a ton of questions for me no problem. They’ve installed a lot of these and know their stuff. Keep in mind why I was originally planning to use the toslink output to my helix you’re able to keep the fading front to back and left to right with the RCAs out and it’s actually better sound quality/bit rate I was told using the RCAs vs toslink. Might not be noticeable to some depending on your input source, but may be noticeable in higher end systems. Don’t be afraid to try the RCAs out and remember to update Zen. I got clean signal up to volume 28/30 on my 22 raptor and set everything up for 25/30 max volume to play it safe. Main takeaway, buy the Zen from these guys because they are going to be able to support you during install. Thanks guys.

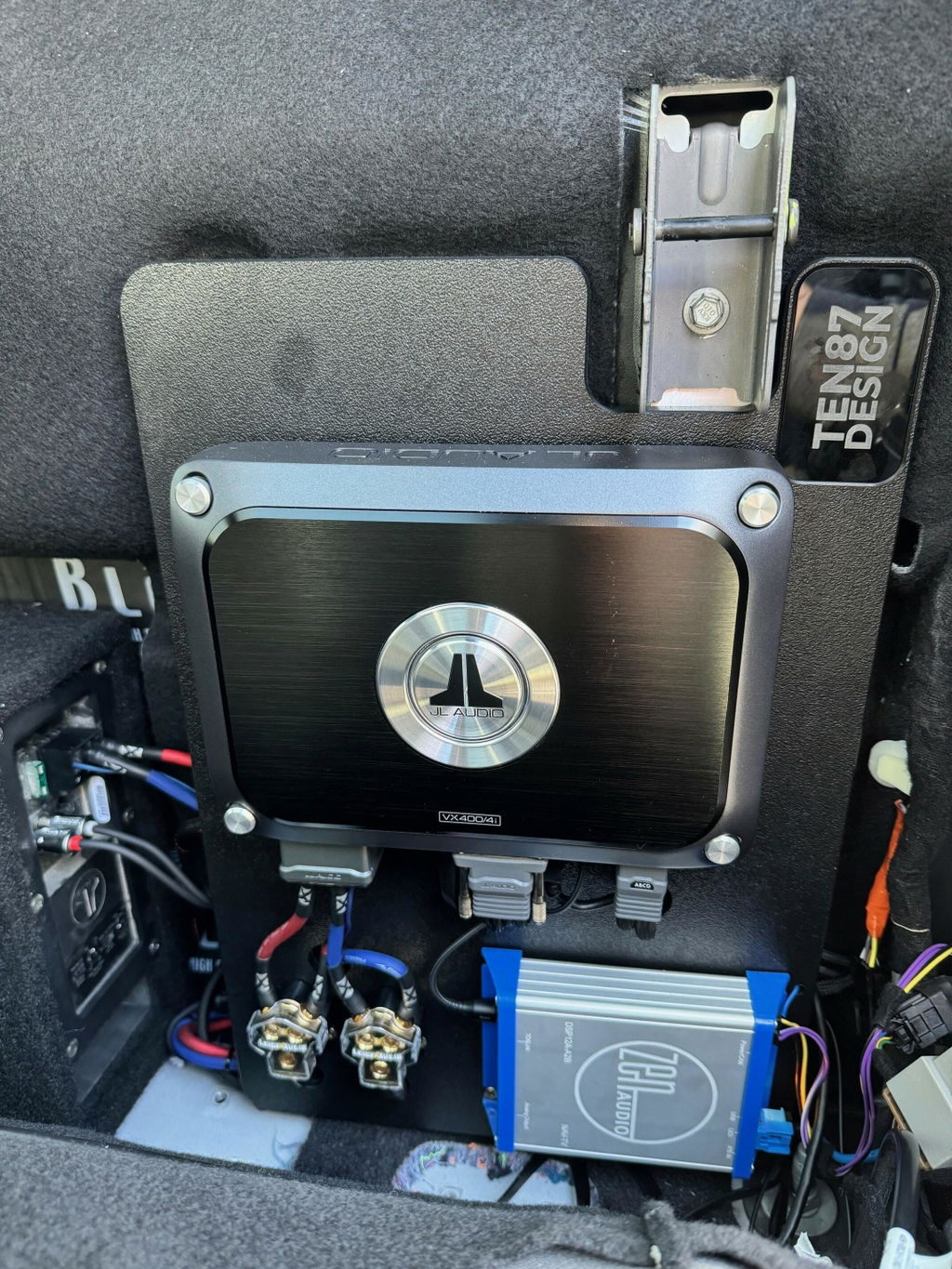

Installed interface last weekend in my '22 F150. Works great! I'm using the TOSlink output to a JL VX-i amp. Sounds great. I did lose the chimes through the radio for some reason. The door open/ ding behind the dash screen now. USB programming is super basic, couldnt find where to apply the factory chimes, probably a weird Ford thing. In the web interface, i was able to hear/adjust chime volumes, but those seem different than the other ones (door open, stop you're about to hit something) chimes. Those all come through the dash now.
Sounds good team is super helpful! Thank you guys.
Awesome, simple and super clean output!
Worth every penny when building a system in a ford.
Work good,
This kit was amazing. Didn't even have to program the bell chimes, just worked!
I was able to complete a full amplifier upgrade on my 2021 F-150 Platinum with the B&O Unleased Audio System. I used the Nav-TV A2P unit to provide the Flat Line Level outputs coming from the factory Head unit. This required the custom B&O T Harness from Sounds Good which runs from the head unit to back behind the rear seat and allows Amp. connection to the A-Pillars and Rear Door Speakers. The remainder of the 18 speakers are available for plug-in using the PAC F-150 T Harness. I used 10 channels of amplification using the AudioControl D-6.1200 and D-4.800 amplifiers which also contain internal DSP's allowing full tuning of each speaker channel. I added an external SKAR mono amp to power the factory subwoofer. I did not replace any of the factory speakers and the system sounds at least 3 times better than the OEM system. It is amazing what 3500 watts of power can do to improve the sound! The guys at Good Sound were very helpful in getting all my wiring correct and my tuning optimized. One thing to remember is the the newer version of the NAV-TV only outputs 1 pair of RCA channels for all the front speakers so you will have to use some Y-cables to feed this into the 10 speakers in the front sound stage.
I am very happy with the amp. upgrade and thanks to the Good Sound Guys!
Don H.
Nothing much could happen without this critical piece of equipment. If it weren't for this company some of us might not have a very good option for the audio aftermarket. I'd say this is one of those scenerios where it's better to be heard and not seen. This unit does it well.
I just received the package I have not installed it as of 12/28/20. I bought with confidence according to the YouTube videos. I'm purchasing equipment from them. it will take a little while to installed in my 2020 Raptor..
i haven't installed the unit yet as i am still getting gear but its built very nice. and the customer service is fantastic!! that why ordered from h these guys!! I talked on phone with them couple times over 10 mins. and there videos on YouTube are great!! cant wait for new video logs coming!! so in the end where this product works or not customer service is king and i am sure they help me out!! will be back for more stuff for my 18 limited f150.
Hello,
Will this NAV-TV ZEN-A2B Plus (NTV-KIT1033) work on my 2024 ford f150 tremor of the eight speaker b&o system? Your site saying it won't work for my truck. Should I try and find the old model zen?
Thanks for your time
Hey Jesse, we just updated this product. This is the correct product for your 2024 B&O system
Still new to the 13th gen 150s. So this product is mandatory for my 19 with the B&O? Or is this just a plug and play system in place of a Line out converter such as the LC7i?
If you are upgrading the complete system, the Zen is mandatory. A LC7 will not correct the factory signal from the amplifier. You could technically fix the signal with a Mosconi Aerospace DSP, but it's not something most consumers/shops are trained for. Use the ZEN
Will this work in a 2019 navigator l black label with revel Ultima system?
I want to add 5ch amp with single 10in sub and front 3way components
Yes, this is the interface you are looking for. You will need the speaker plug in addition to this and if it is like the other Ford vehicles, it will be the APH-FD02, but not 100% sure on the Revel system.
