Ford B&O Key500 Harnesses
Zero-splice install harness — clean, reversible wiring with no cut factory connectors.
SKU: Key500-RegularOvalBO
Plug-in, by design.

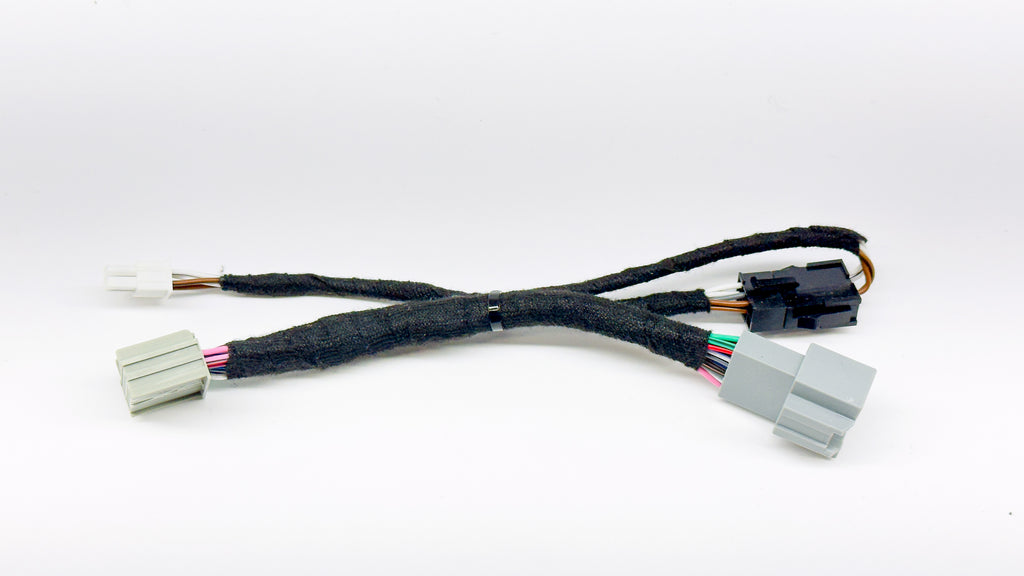

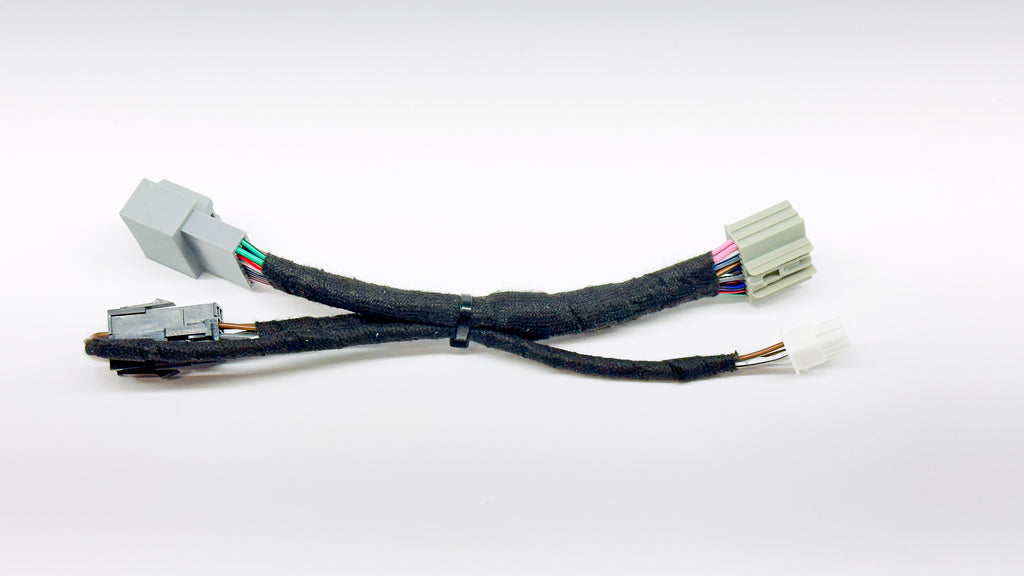

A plug-in harness that feeds a Kicker KEY500.1 amplifier straight from your factory B&O amplifier. One end plugs in between the factory amp and its connector, the other is a ready-made 4-pin plug for the KEY500.1, so no factory wire is cut or spliced.
The KEY500.1 has Kicker's KEY processing built in to correct the B&O bass roll-off, so no separate KeyLOC is needed.
Full specifications
- Adapter Type
- Plug harness
- Factory Audio
- Ford B&O
- Amplifier
- KEY500.1
- Plug Location
- B&O amp
- Amp Connector
- 4-pin plug
- Signal Processor
- In the amp
- Turn-On Wire
- Not needed
- Sold As
- 1 kit
The rest of the route, in one cart.
One part from each DIY step that fits your vehicle. Open any of them to choose its options and add it to your cart without leaving this page.
Mounting amplifiers, a processor and distribution behind the driver-side rear seat: it bolts to three factory points, with no drilling.
Owners who need one compact amp or a DSP on the driver side without taking up the whole area behind the rear seat.
Owners running a 5-channel amp or micro amplifiers who want a clean, secure mount behind the rear seat.
Mounting a compact amplifier or processor behind the passenger-side rear seat, with no drilling and the factory subwoofer left in place.
2015-2026 Ford F-150 and Super Duty SuperCrew owners who want a hidden, clean amp install in the underseat storage area. Not for trucks with Pro Power Onboard.
For owners who need the whole back wall: 53.8 inches for several amplifiers, with room behind for distribution blocks, relays or a DSP.
20 ft of power + 20 ft of ground in 100% OFC Kicker wire, fused at the battery — 1/0, 4 or 8 gauge.
Owners of Ford, Lincoln, Mazda, and Mercury vehicles with factory 6x8-inch oval speakers upgrading to 6.5-inch round aftermarket drivers
Ford truck owners upgrading factory speakers to premium aftermarket 6.5-inch, 6x9-inch, or 8-inch drivers
F-150 and Super Duty owners installing aftermarket tweeters from a 2-way or 3-way component speaker kit
2021+ Ford truck owners with the non-amplified audio system installing aftermarket tweeters
2021+ Ford F-150, Lightning, and Super Duty owners with B&O audio upgrading factory midrange speakers
Closing the factory access holes behind your door speakers
Closing the factory access holes behind your door speakers
Trucks with B&O audio - required when removing the factory subwoofer
2009-2014 F-150 SuperCrew and SuperCab front door speaker upgrades
2015-2020 F-150 SuperCab and 2017-2022 Super Duty SuperCab door speaker upgrades
Two Ten87 Design 6.5-inch subs in a ported box that hides behind the rear seat, with the compact amp rack that fits beside it. Bring your own amp.
Kicker's own carpeted truck box with two 10-inch L7T subs installed, made to sit under the rear seat.
Two 6.5-inch subs in a ported box behind the rear seat — for your own amp, and the seat still folds up.
Genuine JL Audio Stealthbox: two 12-inch TW3 subs in a sealed box that bolts in under the rear seat.
Two Ten87 Design 6.5-inch subs in a ported box that hides behind the rear seat. Bring your own amp.
Custom-fit subwoofer enclosure for the Ford F-Series (2009–2026) — tight, hidden bass built around your Arc Audio.
Everything customers actually ask.
The questions we get most on wiring and harnesses - answered straight. Not sure if yours is here? Call, and a human answers.
One year, on everything we sell. Every item is covered for one year from delivery. If something fails in that first year, we make it right. Questions about a claim? Call us — a real person handles it with you.
Step by step for your vehicle.
Where install steps exist for your exact part, they're below - with the tools you'll need.
-
Plug the harness in at the factory B&O amplifier.
-
Plug the harness's 4-pin connector into the Kicker KEY500.1.
-
Run the KEY500.1's power from the battery and its ground to a solid ground point.
-
Connect your subwoofer to the KEY500.1.
-
Turn on the amp's DC offset switch so it turns on from the speaker-level signal; no remote wire is needed.
-
Run the KEY500.1's setup and tuning steps from Kicker's manual, in order.
-
To go back to stock, unplug the harness.
How they hold up once they're installed.
Harness is perfect!!!!! Made install with factory equipment a breeze!!!!! Recommend to anyone adding a sub to factory set up!!!!! These guys know what's up!!!!!

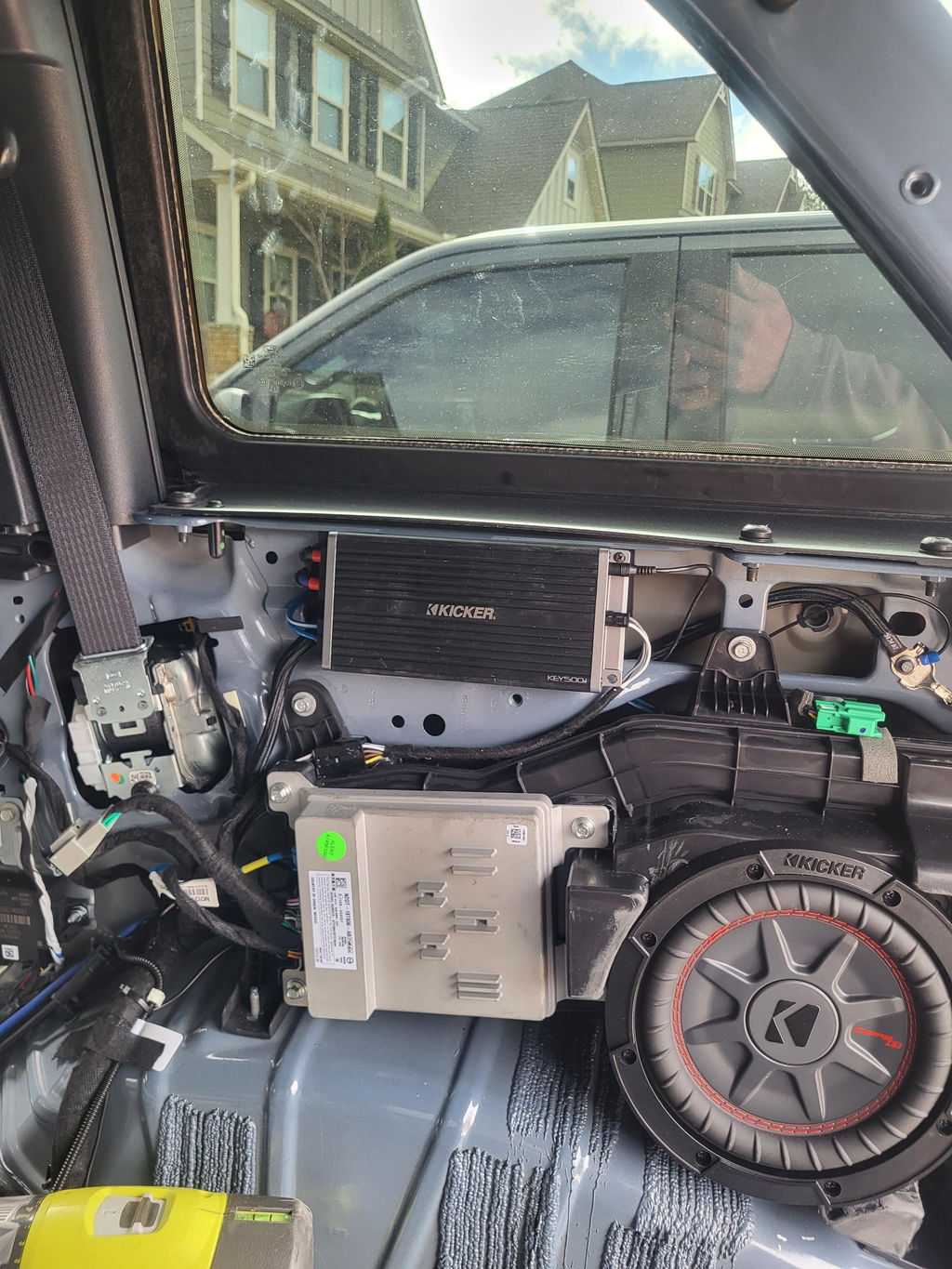

SO EASY! I'm very glad I found this. Installed a Kicker Key 500.1 & Kicker Sub in the factory locations in a 2026 Bronco with the B&O sound system. Unplug factory amp, plug in this harness to both the factory amp and the pigtail to the Kicker Key. Power to the battery, ground to the factory ground point above the enclosure, speaker wire to the sub... run through the setup. Bronco finally sounds like it should.
Received excellent customer support for the questions I had with my specific sound system, ensuring I ordered the correct product. This custom wiring harness was perfect for tying in a new Kicker Key500.1 DSP amp into the factory Ford B&O amplifier wiring harness, without splicing into any factory wires - truly plug and play! Great product, making installation of the new amp far more painless. The only caution is ensuring you mount your new amplifier close by the new wiring harness, as the new harness wiring is not very long.
I purchased this harness and the infinite baffle block off plate together for my 2025 F350. Both were super high quality and saved me the time of figuring out what connectors I need and what wires needed spliced to get the feed to my kicker key500.1 amp.
I had a couple other questions and when I called the SGS guys they were super friendly, helpful and knowledgeable on the phone.
Worth every penny. Got me up and running in no time. I paired this with a pair of Rockford shallow 8's behind the seat and the performance is incomparable vs the factory "subwoofer".
Will absolutely go straight to SGS for any future needs.
The harness is exactly what was needed to tap into factory signal for after market amp. Only problem I ran into is my new amp is mounted 2-3 feet away from the factory amp and this harness is pretty short, so I had to go searching on amazon for the 4-pin extensions, which I could only find in 8" segments (made of computer uses). Definitely would be nice if SGS sold some extensions that could be purchased along with the harness so buyers could be sure they're getting the right products and they're all arriving together. But that said, their harness makes life easy, and shipping was fast! Plug and (wait for extensions and...) play! ;)
