2015-2026 Ford F-Series Passenger Side Amplifier Rack | No-Drill Factory Fit
Half-inch solid-core, USA-made HDPE amp rack for behind the passenger-side rear seat, in the factory jack's spot. Nothing gets drilled.
SKU: Ford24FseriesAmpPlatePass
How can we help finish your build?
Tell us where you are in the build and a builder will help you get the rest of your system dialed in. Your comes along automatically.
The details.
This passenger-side amplifier rack mounts behind the rear seat using your truck's factory jack mounting points. Compact, hidden, and solid - no drilling required.
Check before you buy
The factory jack and its passenger-side mount come out to make room for the rack. For a large amplifier, choose the driver-side or full-length rack. Not sure which system you have? Ask us before you buy.
Full specifications
- Mounting Location
- Passenger
- Mounting Method
- No drilling
- Mount Points
- Latch + floor
- Rack Size
- 19″ × 15.75″
- Material
- 1/2-in HDPE
- Factory Subwoofer
- Can stay
- Brand
- Ten87 Design
- Sold As
- Rack + kit
The rest of the route, in one cart.
One part from each DIY step that fits your vehicle. Open any of them to choose its options and add it to your cart without leaving this page.
20 ft of power + 20 ft of ground in 100% OFC Kicker wire, fused at the battery — 1/0, 4 or 8 gauge.
Owners of Ford, Lincoln, Mazda, and Mercury vehicles with factory 6x8-inch oval speakers upgrading to 6.5-inch round aftermarket drivers
Ford truck owners upgrading factory speakers to premium aftermarket 6.5-inch, 6x9-inch, or 8-inch drivers
Add a sub amp to Ford B&O — fix the bass roll-off with a pre-set KEYLOC, or keep it and save.
A pair of factory 2-pin plug pigtails with bare OFC copper leads. Plug-and-crimp aftermarket speaker install with zero factory wire cuts.
Takes the place of the rear B&O amp and hands your amplifiers six clean analog channels.
Plug-in T-harness for 2021+ Ford non-amplified factory stereos. Hand-built in Nashville with OFC copper, soldered 4-channel Straight Wire RCA tips, and fully reversible installation.
Plug-in T-harness for 2015-2020 Ford F-Series and other pre-2021 non-amplified Fords. Hand-built in Nashville with OFC copper, soldered 4-channel Straight Wire RCA tips, and fully reversible installation.
SGS-built plug-in harness that connects a Kicker KEYLOC module to your Ford B&O factory amp output. Pick the variant that matches your factory subwoofer shape — YMM will auto-select if your vehicle is in our database.
A pair of OFC copper pigtails with Ford's small BLACK tweeter / mid-range factory connector. Check your own plug color before ordering — black = this product, gray = different SKU.
Plug-in dash-side harness that gives you access to the speaker wires running to the factory rear-door speakers on 2021-2023 F-150 B&O Unleashed trucks. Connect your amp output at the dash instead of splicing door wires.
Zero-splice install harness — clean, reversible wiring with no cut factory connectors.
2025+ Ford A²B stereo interface — now works on all Broncos (including non-B&O). Burr-Brown DAC up to 192 kHz. Same engine as the ZEN-A2B Plus.
F-150 and Super Duty owners installing aftermarket tweeters from a 2-way or 3-way component speaker kit
2021+ Ford truck owners with the non-amplified audio system installing aftermarket tweeters
2021+ Ford F-150, Lightning, and Super Duty owners with B&O audio upgrading factory midrange speakers
Closing the factory access holes behind your door speakers
Closing the factory access holes behind your door speakers
Trucks with B&O audio - required when removing the factory subwoofer
2009-2014 F-150 SuperCrew and SuperCab front door speaker upgrades
2015-2020 F-150 SuperCab and 2017-2022 Super Duty SuperCab door speaker upgrades
Two Ten87 Design 6.5-inch subs in a ported box that hides behind the rear seat, with the compact amp rack that fits beside it. Bring your own amp.
Kicker's own carpeted truck box with two 10-inch L7T subs installed, made to sit under the rear seat.
Two 6.5-inch subs in a ported box behind the rear seat — for your own amp, and the seat still folds up.
Genuine JL Audio Stealthbox: two 12-inch TW3 subs in a sealed box that bolts in under the rear seat.
Two Ten87 Design 6.5-inch subs in a ported box that hides behind the rear seat. Bring your own amp.
Custom-fit subwoofer enclosure for the Ford F-Series (2009–2026) — tight, hidden bass built around your Arc Audio.
Not all amp racks are built the same.
An amp rack lives behind your seat through heat, cold, and constant road vibration — and you're drilling into it to mount heavy gear. Most competitors reach for metal, ABS, expanded PVC, or expanded HDPE; wood is the common DIY shortcut. Here's how each actually behaves where it counts.
| Material | Easy to work with | Holds real weight | Low material cost | Shrugs off moisture |
|---|---|---|---|---|
material sample
What SGS uses
Solid Core USA-Made HDPE
Dense, Non-Porous and Forgiving
| Strong | Strong | High cost | Strong |
material sample
Competitor materialMetal
Heavy, resonates, hard to cut
| Fails | Strong | High cost | Strong |
material sample
Competitor materialExpanded HDPE
Hollow core, weak at bolt holes
| Strong | Fails | Low cost | Fails |
material sample
Competitor materialABS
Rigid but thin and brittle
| Strong | Fails | Low cost | Fails |
material sample
Competitor materialExpanded PVC
Often foamed, brittle when cold
| Strong | Fails | Low cost | Fails |
material sample
DIY build shortcutWood / Plywood
Absorbs moisture, swells, rots
| Strong | Strong | Low cost | Fails |
Built in-house, start to finish.
Every rack is designed, machined, and finished under one roof in Mount Juliet, Tennessee. No outsourcing, no imported blanks — just USA-made HDPE, a CNC machine, and people who care whether it fits right. Here's how a flat sheet becomes a rack that drops into your truck.
Video · From the shop floor
Solid Core USA-Made HDPE
It starts with a sheet of 100% USA-made HDPE — solid all the way through, the same material trusted in marine and industrial builds. No hollow cores.
Precision CNC Machining
Each rack is nested from our own CAD files and cut on our CNC machine. Feeds and speeds are dialed in for HDPE so every edge comes off clean and every mounting hole lands exactly where it should.
Hand-Finished & Inspected
Every rack is deburred, checked, and test-fit by hand before it's packed. If it wouldn't go in our own truck, it doesn't ship.
Packed to Survive Shipping
Every rack is wrapped, boxed, and packed by the same hands that built it — with the hardware bagged and labeled, so nothing arrives loose, scratched, or missing.
Everything customers actually ask.
The questions we get most on amp racks — answered straight. Not sure if yours is here? Call, and a human will answer.
One year, on everything we sell. Every item is covered for one year from delivery. If something fails in that first year, we make it right. Questions about a claim? Call us — a real person handles it with you.
Step by step for your vehicle.
Every rack ships ready to install at home in an afternoon. Follow the steps for your exact truck and grab the tools listed — most are in a basic toolbox. Stuck? A real tech is one call away.
-
Flip down the passenger-side rear seat
-
Remove the factory jack and its mount from the passenger side
-
Set the top bracket behind the seat-latch bracket (not in front)
-
Fit a floor spacer between the floor and each floor foot
-
Bolt the feet to the factory floor threads with the M8 bolts
-
If the carpet pushes back hard, trim it where the feet sit
-
Mount your amplifier to the rack and connect your wiring
How it holds up once it’s in the truck.

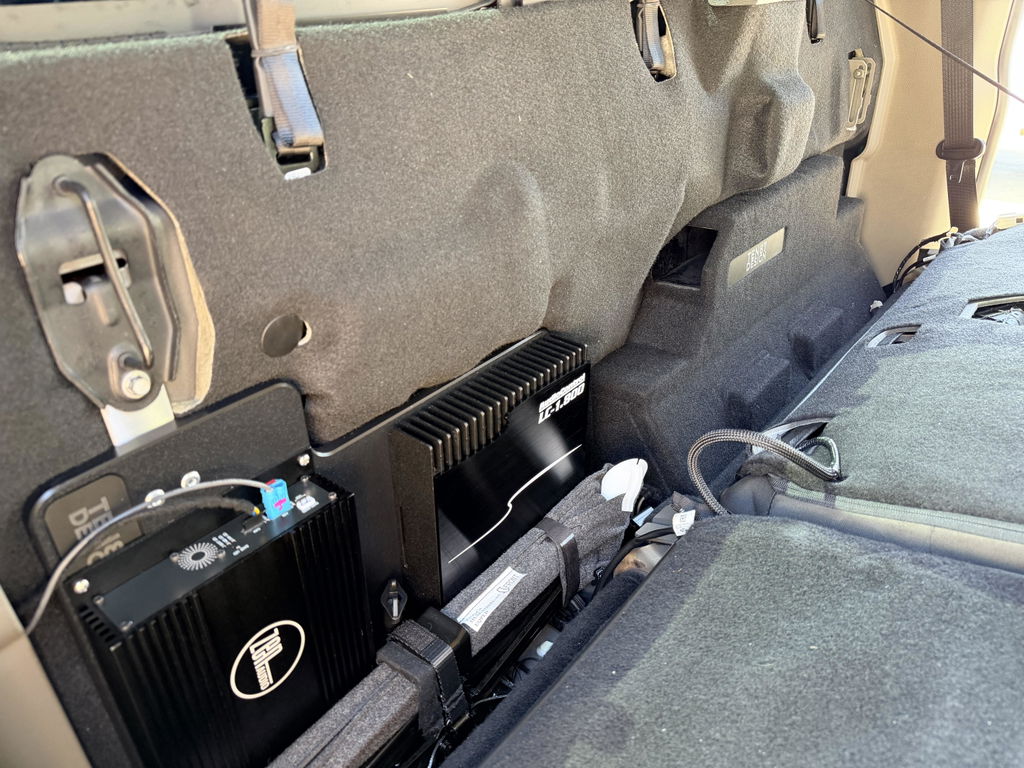

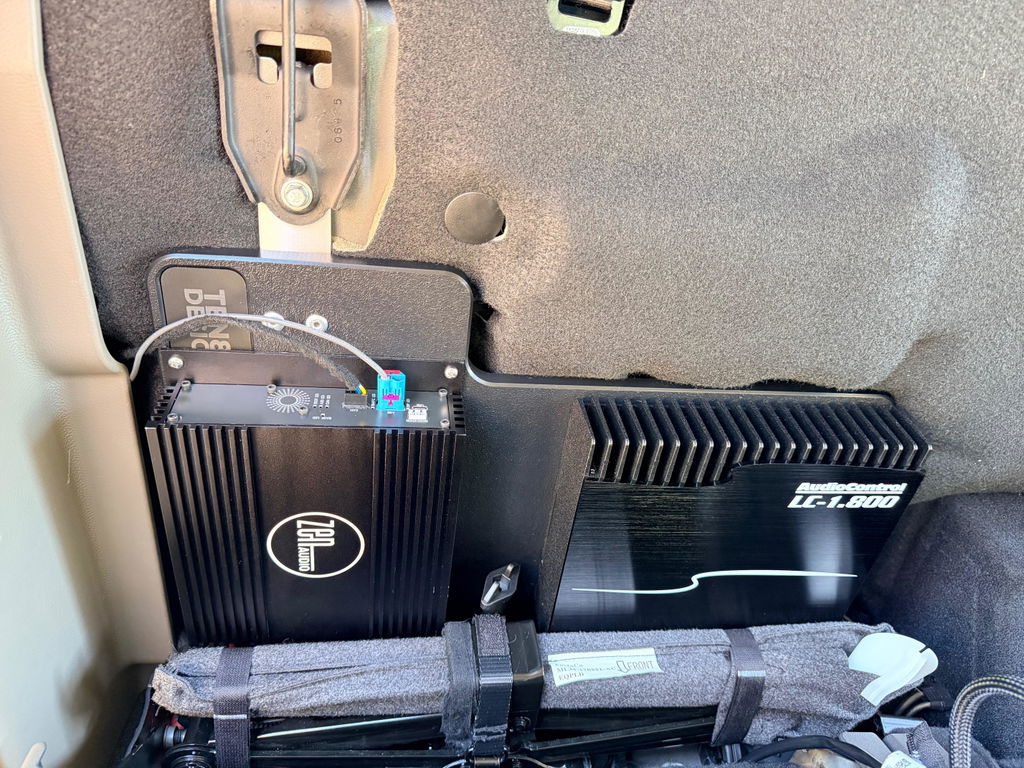

I have a 2025 F-150 Platinum Plus with B&O Unleashed and the PowerBoost. I purchased both this passenger amp rack and the behind the seat subwoofer for the driver side. Both are excellent quality! The instructions tell you to remove the factory jack, but that wasn’t really an option for me. I got to looking and noticed I could rotate the jack mount 180° and it would bolt right on top of the amp racks mounts! This leaves about 2” between the amp rack and the jack when fully installed. This left me plenty of room to mount my NavTV Zen Power 9 (F25) to power the door speakers and an audio control 800.1 for the sub. This is an EXCELLENT combination, the NavTV DSP and power output for the door speakers is phenomenal. The NavTV also has a 500 watt RMS subwoofer output but I found it to be a little underwhelming and wanted more power so I added the AudioControl to the NavTVs preamp out which also has full DSP control. Sounds phenomenal for the basic plug and play setup. NavTV recommends running a dedicated power AND ground to the 12v battery under the hood. However, this being a PowerBoost, there’s already a 12v AUX battery under the rear passenger seat. This battery is on its own 125 amp fuse with a 6ga wire straight from the battery junction box under the hood. I’m powering both amps straight from the 12v AUX battery with zero issues. Under full load, there’s less than 0.5v of voltage drop between the terminals on the amps and the under hood battery. There’s mixed reviews online of people doing this, so do it at your own risk, the way the PowerBoosts electrical system works, I think this is a better solution instead of pulling power from the under hood battery IMO. My one complaint, and I will probably fix this, is the included nylon spacers that lift the rack off of the floor 3/4 of an inch. This is an issue because the top right of the amp rack is pushing up against the bottom of the TCM connectors pretty hard, I’m worried over time they will break. Overall a solid product, they really should inform their customers you can reinstall the jack by simply flipping the mount. I will say when the bottom of the seat is folded up, there is some contact with the amps, but not too much to worry about and I rarely fold my seats up.

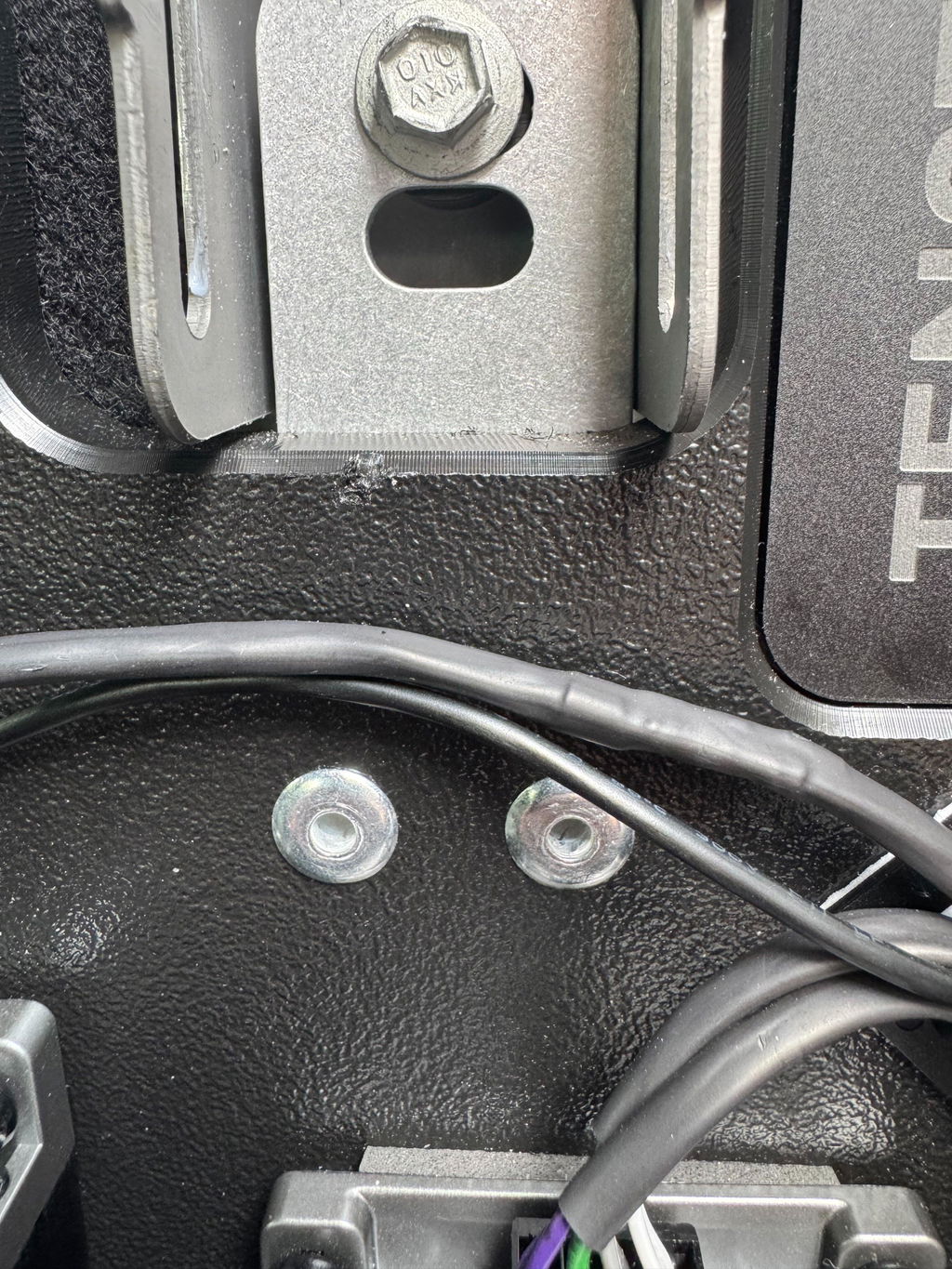

Really great quality panel and installation seems straight forward, however, using the plastic bushing on the back wall bracket [which was plumb] did not allow the seat to clip back and took a chunk out of the panel. Use the bushing at the bottom far left mount only.

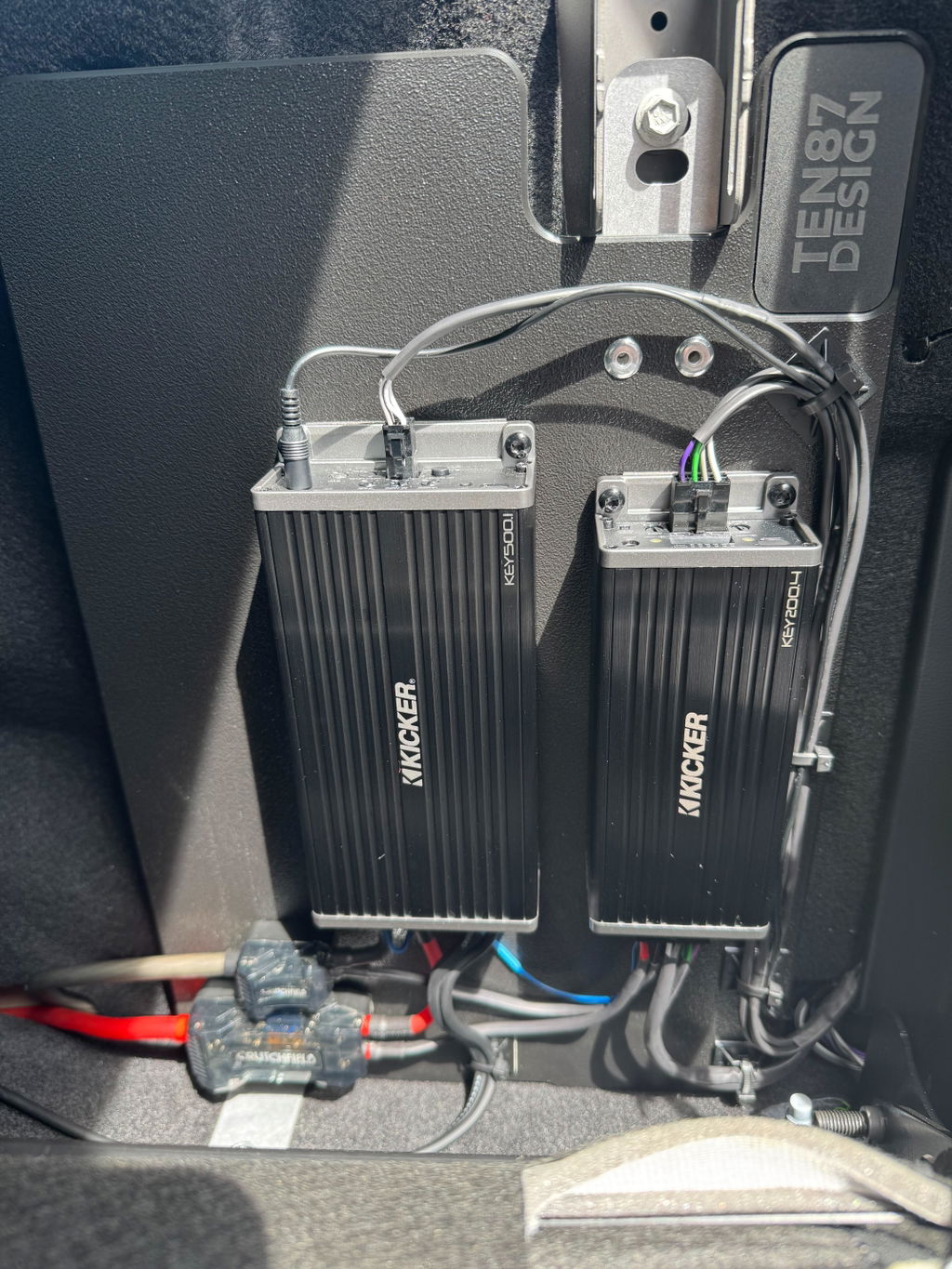

Awesome product for your amp/amps/crossovers whatever you need securely mounted! Ignore the wiring mess in photo 😂.
Work as intended, found that I had to cut the bushings at the bottom and half and cut off some of the tab at the top due to interference on the Ford F150, lightning
Top notch customer support and advice by the soundsgoodstereo crew. Answered all my questions before I ever even made a purchase with them, just a great source of knowledge and experience.
I wanted to write this for people who may be having the same questions I did since it was so difficult to find information online about the 2025 f150s and their revised B&O sub and amp location, nothing I could find answered these questions directly and I'd like to help if I can.
First 2025 has the amp behind the carpet on the passenger side. I tried using this board over the carpet leaving the amp in its stock location and it would not fit without applying extreme force to the factory amp. If you want to keep your B&O amp intact remove it and place it on the board. I found the upper right to be the best spot where I could reach all factory harnesses without cutting or pulling the harness.

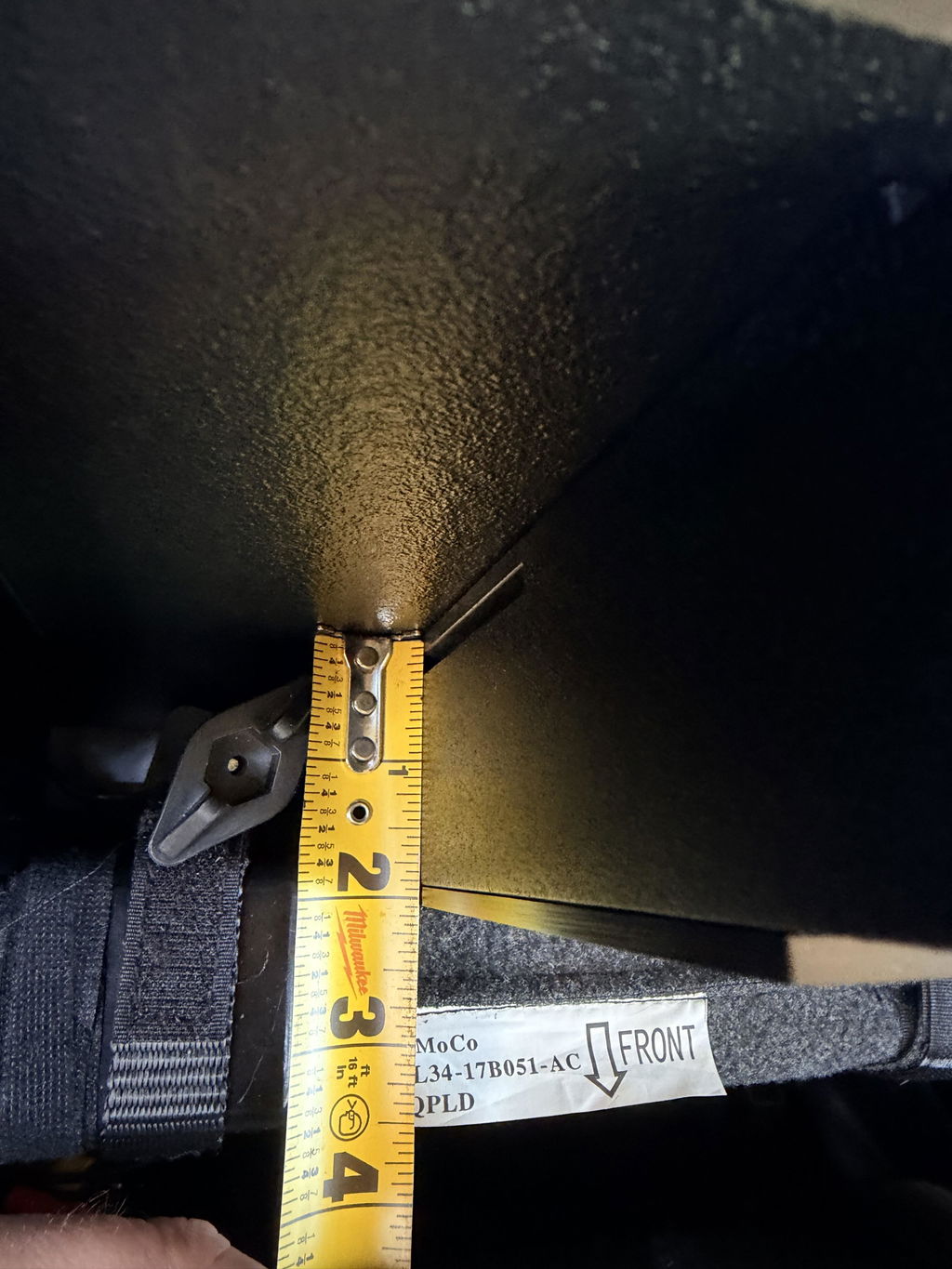

Second the rear seat latch interferes slightly with the top of the board mounting bracket, cut back 3/16-1/4" or do what I did and take a file right down the center of the bracket to make some room for yourself to get the bolt back in place.
Third just buy the keyloc and harness, it makes your life so much easier and turns a wiring nightmare into a 2 second job, every wire I attempted to find info on was different from the Ford specs, its not worth the hassle.
Top notch customer service and products.
Fit as expected. Good quality and built to last.
Would purchase again and or recommend to others.
I used this amp rack on my 2024 Ford Lightning and it turned out great.
From shipping speed, follow up on delivery, post delivery satisfaction… all above standards. Great product and experience!!
I purchased this amp board to mount a small powered subwoofer. Not exactly its intended use, however the amp boards provides a sturdy mounting surface for any device. Excellent quality and durability.
As a small shop I normally just build amp racks/boards myself. I decided to purchase this for the ease of install and it was perfect. The time saved not building a board like this outweighs the cost. Great product. Perfect fitment. Great finish.
Fit perfectly as expected. You'll save time and money with their amps racks and speaker adapters.
Fit and worked perfect.

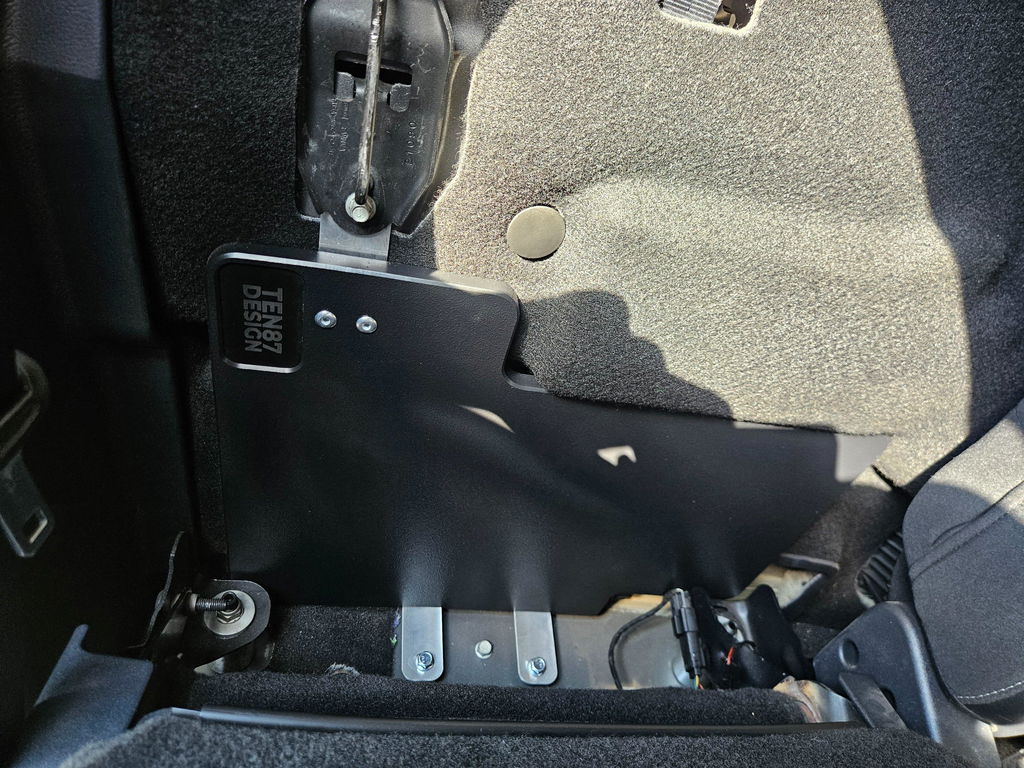

Easy to install and fits perfectly behind seat.
Worked great on a 2025 f150 Raptor, mounted perfect behind the drivers side rear seat. Only 2 of the mounts line up on these new trucks as there is a bolt on the way for the third, but it’s holding strong.
Thanks again
Had I know that my friend was still going to mount amps and that I would have an amp rack wiggle I would have told him to hold off. Now I'm trying to look for a way to manufacture something to hold the bottom part snug.
First of all excellent caring customer service. Regardless of the amount of purchase Don was extremely helpful and courteous. I absolutely loved the amp rack for behind the seat on my 2016 ford lariat. The door speaker mounts are the best you will ever find. Highly recommended
Fit perfectly
Not sure what'll fit? Just call.
Tell us your truck and the amps, DSP, and distribution you're mounting — we'll spec the right size rack, or build one to order for any layout. No pressure, no upsell.
