2019-2026 GMC Sierra & Chevrolet Silverado Crew Cab Amplifier Rack | No-Drill Factory Fit
“This rack fits solid with the pre-drilled holes directly centered onto the factory studs!”
Half-inch, solid core USA-made HDPE rack that slides over the factory studs on your truck's rear cab wall, with room in the middle for your amps.
SKU: 1921GMCAmpRack
How can we help finish your build?
Tell us where you are in the build and a builder will help you get the rest of your system dialed in. Your comes along automatically.
The details.
This half-inch, solid core USA-made HDPE board turns your truck's rear cab wall into a mounting surface for your amps and processor. On a truck with the factory Bose system it slides over the factory studs and is held by the factory nuts; the Bose amp and the power inverter then go back on at its two ends with the six included screws, which leaves the middle, about 25 inches between the cab vents, for your gear. The rear seat back comes out to fit it, and most installs trim some of the seat-back foam.
Check before you buy
Built for trucks with the factory Bose system: check yours in the vehicle selector. Without Bose, some studs are missing and extra mounting points are needed. On some of the newest trucks a few holes need opening up slightly; an adjusted rack is coming. Not sure? Call or text 615-610-1413.
Full specifications
- Mounting Location
- Behind seat
- Mounting Method
- OEM studs
- Rack Size (in)
- 44.5 × 14.5
- Rack Thickness
- 1/2 inch
- Material
- Solid HDPE
- Factory Audio
- Bose trucks
- Brand
- Ten87 Design
- Screw Pack
- 6 stainless
The rest of the route, in one cart.
One part from each DIY step that fits your vehicle. Open any of them to choose its options and add it to your cart without leaving this page.
20 ft of power + 20 ft of ground in 100% OFC Kicker wire, fused at the battery — 1/0, 4 or 8 gauge.
Silverado and Sierra owners who want the best possible speaker mounting platform for their truck
Tap your factory Bose amp's subwoofer signal — no wire cutting.
Zero-splice install harness — clean, reversible wiring with no cut factory connectors.
Zero-splice install harness — clean, reversible wiring with no cut factory connectors.
A pair of plug pigtails with the GM factory 2-pin door-speaker connector. Zero-splice, reversible aftermarket door speaker install on most 2010+ GM trucks and SUVs.
Silverado and Sierra owners installing aftermarket tweeters from a 2-way or 3-way component speaker kit
2019-2021 Sierra/Silverado 1500 and 2020-2022 HD door speaker upgrades - front plates fit all cab styles
2022+ Sierra 1500 and Silverado 1500 door speaker upgrades - front plates fit all cab styles
2023+ Sierra HD and Silverado HD (2500/3500) door speaker upgrades - front plates fit all cab styles
Kicker's own carpeted truck box with two 12-inch L7T subs installed, made to sit under the rear seat.
Factory-look stealth subwoofer enclosure for the Silverado & Sierra 1500 (2019-Up) — tight, hidden bass built around your JL Audio.
Factory-look stealth subwoofer enclosure for the Silverado & Sierra (2019-Up) — tight, hidden bass built around your JL Audio.
Not all amp racks are built the same.
An amp rack lives behind your seat through heat, cold, and constant road vibration — and you're drilling into it to mount heavy gear. Most competitors reach for metal, ABS, expanded PVC, or expanded HDPE; wood is the common DIY shortcut. Here's how each actually behaves where it counts.
| Material | Easy to work with | Holds real weight | Low material cost | Shrugs off moisture |
|---|---|---|---|---|
material sample
What SGS uses
Solid Core USA-Made HDPE
Dense, Non-Porous and Forgiving
| Strong | Strong | High cost | Strong |
material sample
Competitor materialMetal
Heavy, resonates, hard to cut
| Fails | Strong | High cost | Strong |
material sample
Competitor materialExpanded HDPE
Hollow core, weak at bolt holes
| Strong | Fails | Low cost | Fails |
material sample
Competitor materialABS
Rigid but thin and brittle
| Strong | Fails | Low cost | Fails |
material sample
Competitor materialExpanded PVC
Often foamed, brittle when cold
| Strong | Fails | Low cost | Fails |
material sample
DIY build shortcutWood / Plywood
Absorbs moisture, swells, rots
| Strong | Strong | Low cost | Fails |
Built in-house, start to finish.
Every rack is designed, machined, and finished under one roof in Mount Juliet, Tennessee. No outsourcing, no imported blanks — just USA-made HDPE, a CNC machine, and people who care whether it fits right. Here's how a flat sheet becomes a rack that drops into your truck.
Video · From the shop floor
Solid Core USA-Made HDPE
It starts with a sheet of 100% USA-made HDPE — solid all the way through, the same material trusted in marine and industrial builds. No hollow cores.
Precision CNC Machining
Each rack is nested from our own CAD files and cut on our CNC machine. Feeds and speeds are dialed in for HDPE so every edge comes off clean and every mounting hole lands exactly where it should.
Hand-Finished & Inspected
Every rack is deburred, checked, and test-fit by hand before it's packed. If it wouldn't go in our own truck, it doesn't ship.
Packed to Survive Shipping
Every rack is wrapped, boxed, and packed by the same hands that built it — with the hardware bagged and labeled, so nothing arrives loose, scratched, or missing.
Common Questions About This Amp Rack
The questions we get most on amp racks — answered straight. Not sure if yours is here? Call, and a human will answer.
One year, on everything we sell. Every item is covered for one year from delivery. If something fails in that first year, we make it right. Questions about a claim? Call us — a real person handles it with you.
Asked by truck owners
3 answered by our teamOn the Bose, not much. For the Non-Bose or the 2024 Chevy trucks, a decent amount. Every truck is a little different. For example, on the 2023 GMC SLT trucks, no foam needs to be trimmed.
Answered by the SGS team · Feb 2024
Not much, it varies across the rear of the truck. Thin as possible will make your life easier. We like to stay 2-2.5-inch tall.
Answered by the SGS team · Jan 2023
This is just the amplifier rack, no gear is included.
Answered by the SGS team · Dec 2022
Step by step for your vehicle.
Every rack ships ready to install at home in an afternoon. Follow the steps for your exact truck and grab the tools listed — most are in a basic toolbox. Stuck? A real tech is one call away.
-
Pull the three rear headrests, then the six headrest guides.
-
Remove the four 10 mm bolts at the bottom of the seat back, release the three latches at the top, and lift the seat back out. The seat cushion stays in.
-

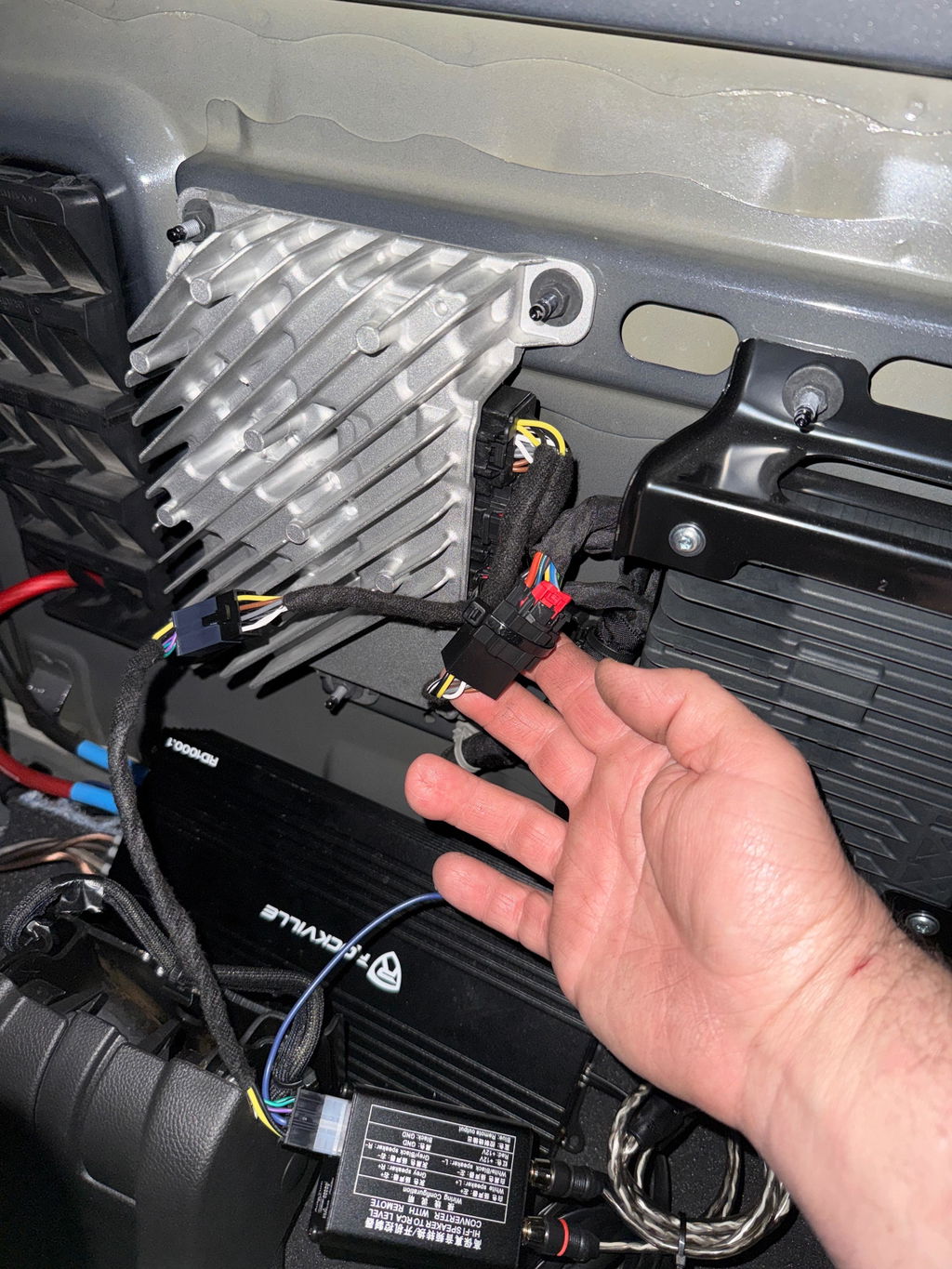

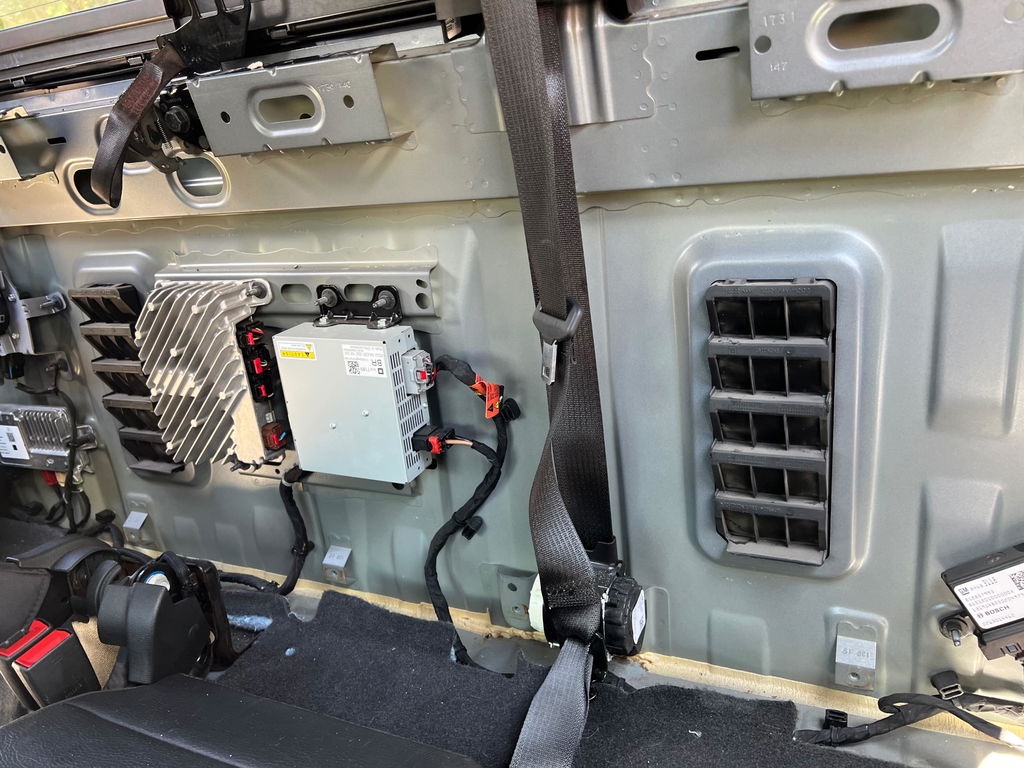

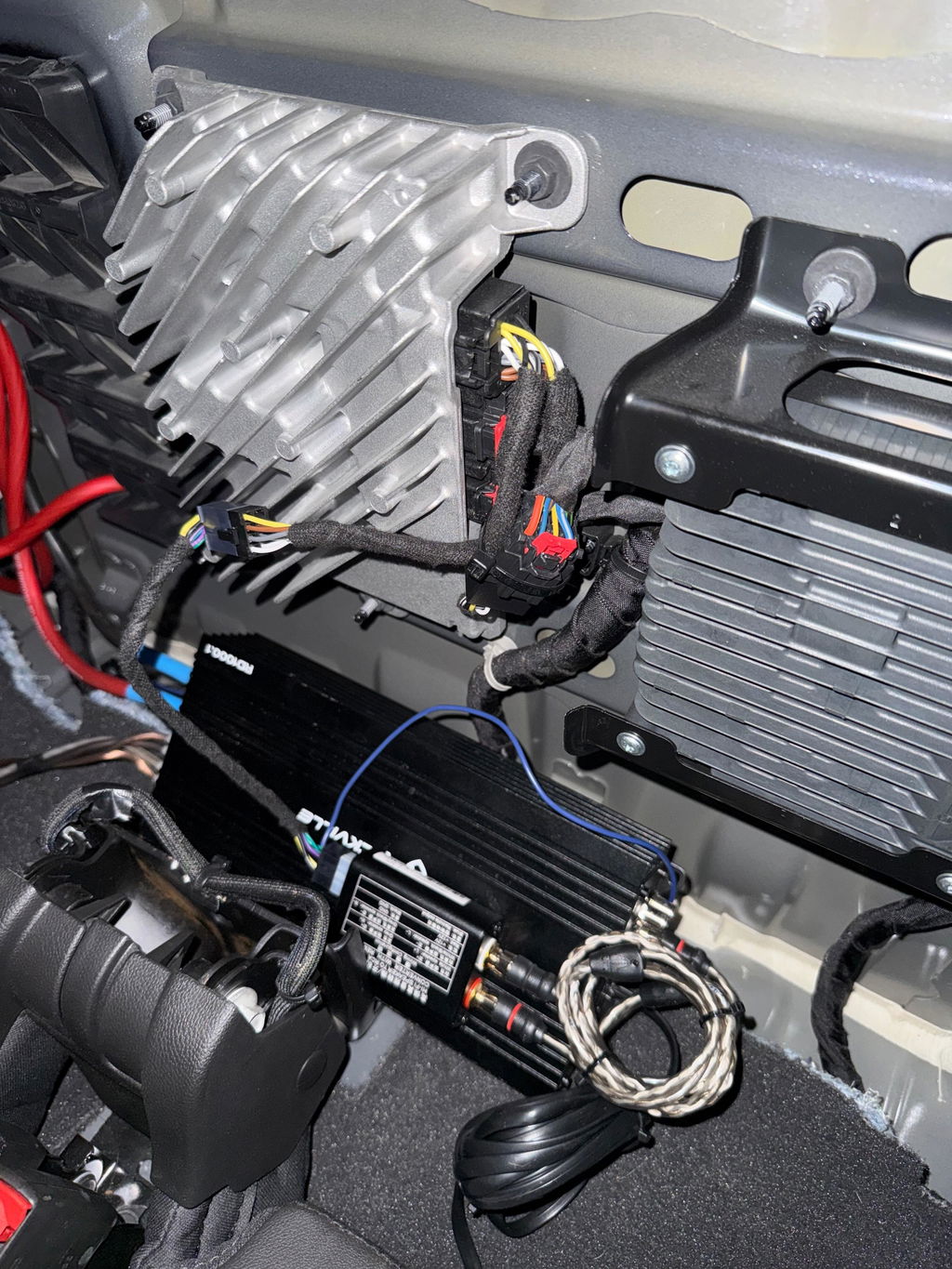

Take the factory Bose amp and the power inverter (if equipped) off their studs on the rear wall (10 mm nuts). They can stay plugged in; cut the zip ties on the factory harness if you need more slack.
-
Optional, against rattles: put sound-deadening on the rear wall where the rack will sit.
-

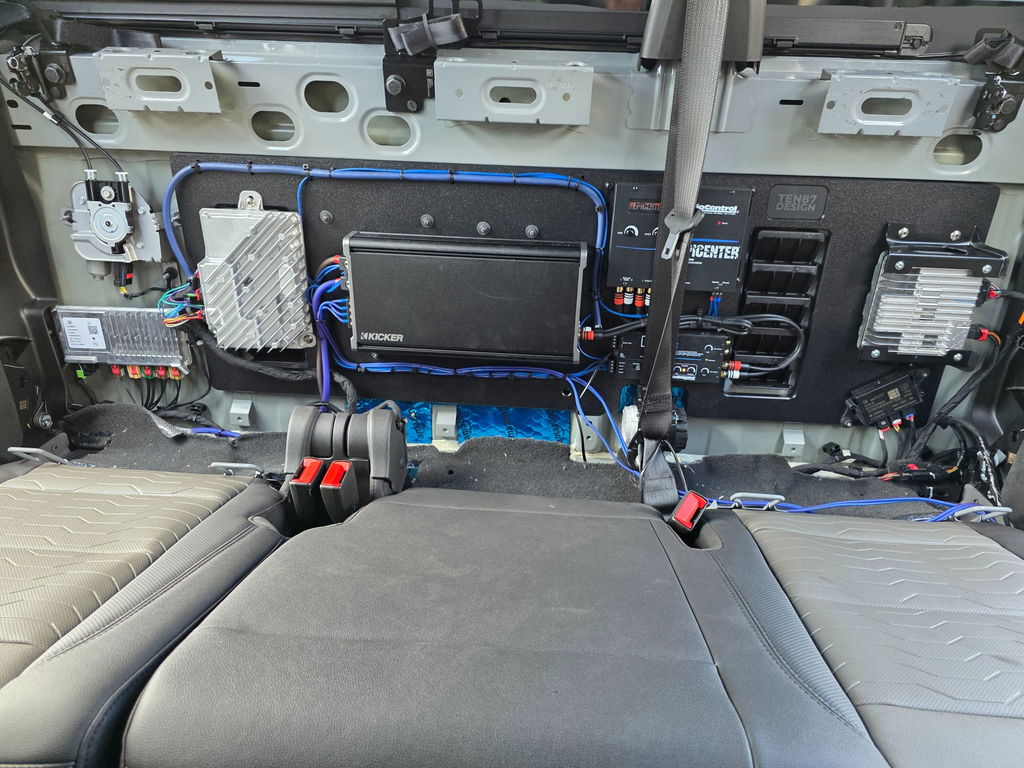

Slide the rack over the factory studs and tighten the factory nuts.
-
Mount the Bose amp at the passenger end and the inverter at the driver end of the rack with the six included screws.
-

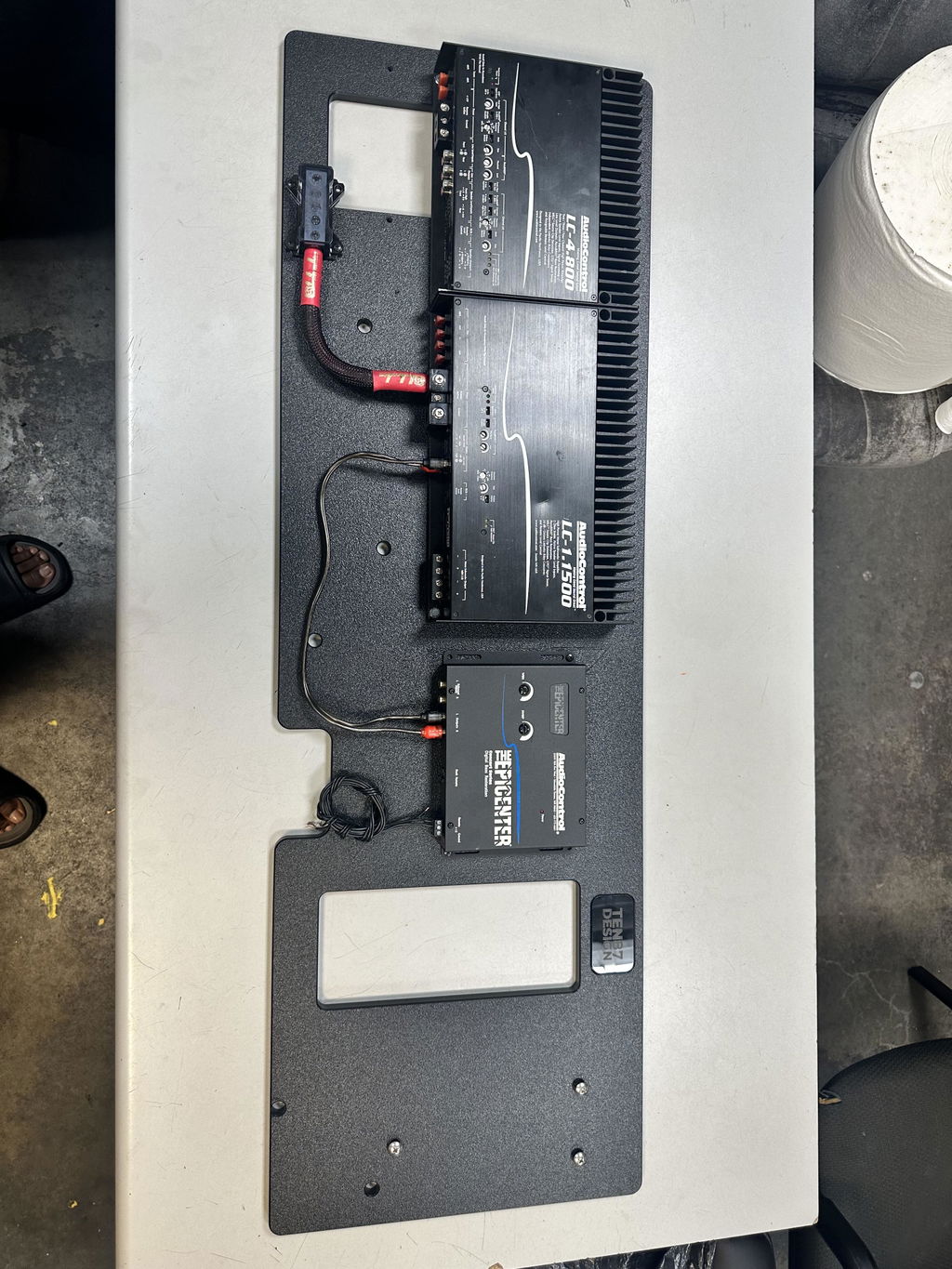

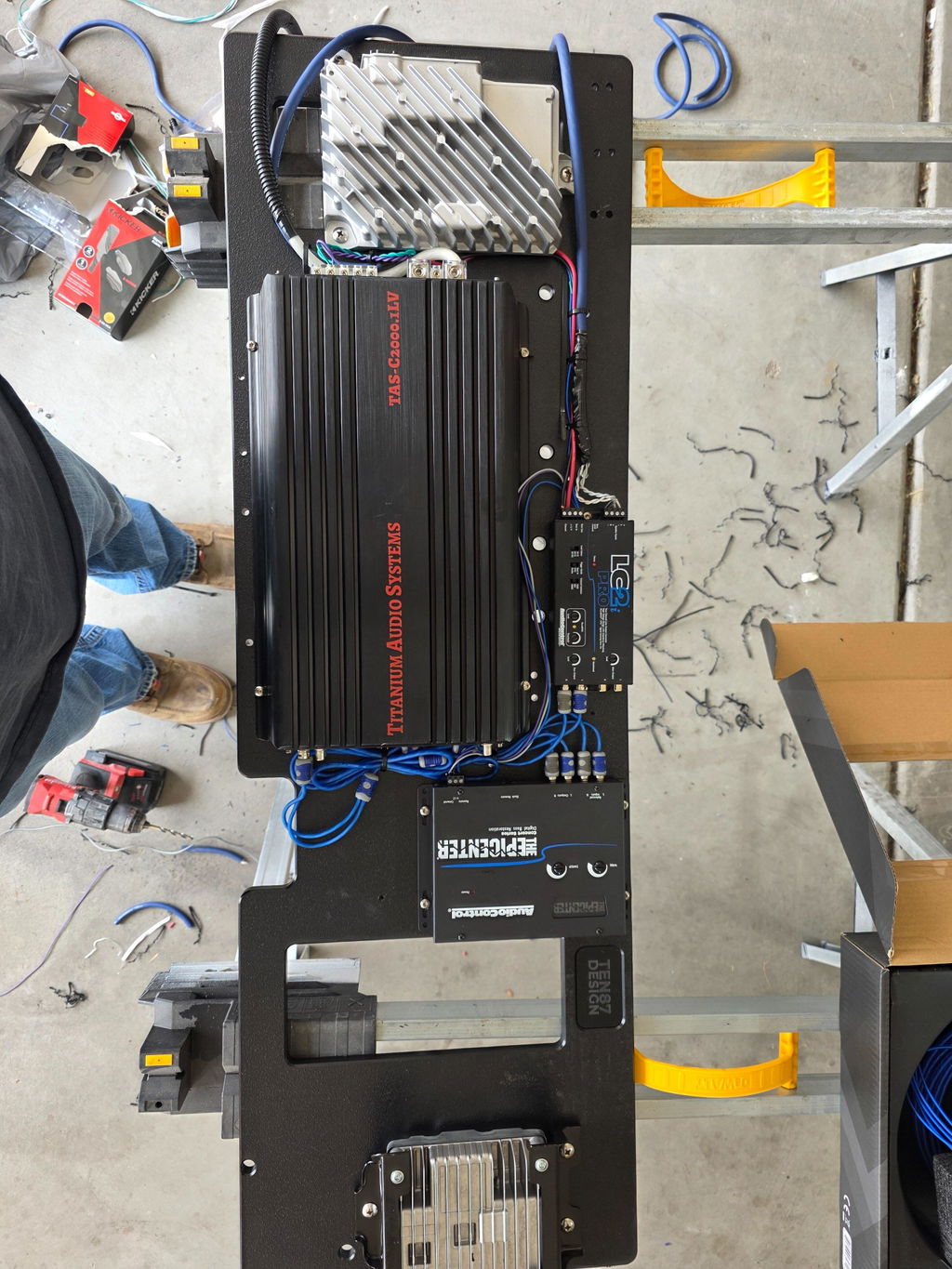

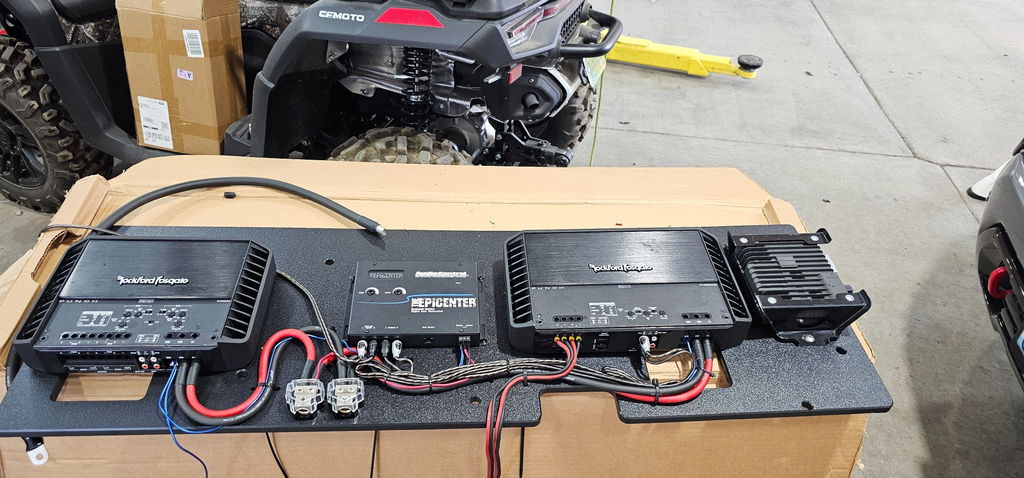

Mount your amps and processor in the middle. Keep them off the two cab vents: a 1/4-inch spacer lets an amp sit over a vent.
-
Test-fit the seat back and trim the seat-back foam where it touches your gear.
-

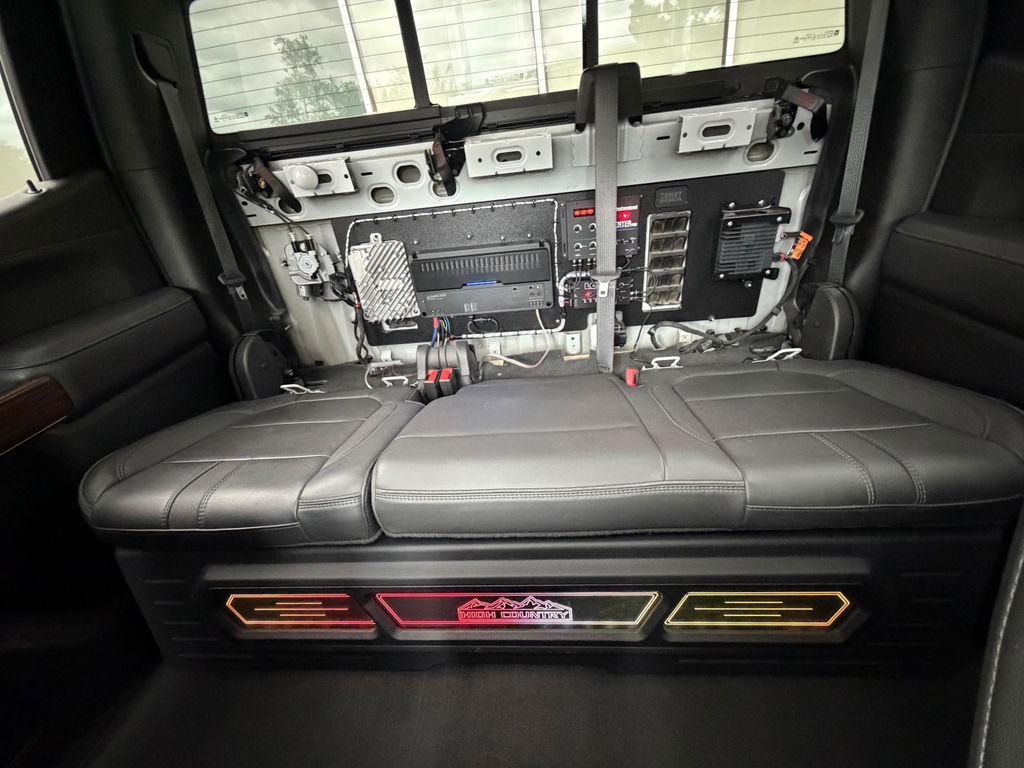

Reinstall the seat back with its three latches and four bolts, then the headrest guides and the headrests.
How it holds up once it’s in the truck.
Did not fit my 2026 1500 Denali without modification. Only 3 of the pre drilles holes lined up with the back wall studs. Centre of holes on the studs that didnt fit were out by min 1/4". Required a step drill to oversize the holes to get the rack to fit over the studs. Other than the holes being misaligned the amp rack is good. Nice size for amps and easy to drill and tap. Definately test fit before putting the amplifier rack together.
Thanks for the review and the feedback, Gary, and we're sorry the rack didn't bolt up as delivered on your 2026 Sierra 1500 Denali. We're passing your notes on to our engineering team so they can update the design. So far, we've only seen this fit issue on 2026 trucks built for the Canadian market, so reports like yours really help us pin it down. We appreciate you taking the time to share it, along with the test-fit tip for other buyers.
- Don
Starting off with how awesome this place is, i found what I thought I needed, so I called them expecting to get a voicemail.
Nope! Dude answered on the second ring and asked me what he could do for me. I explained what I had and what I wanted to do.
He took the time to look up my specific amp so he could answer my question at %100.
I could not have been happier with their response and quality of product. My order came in just a couple days.

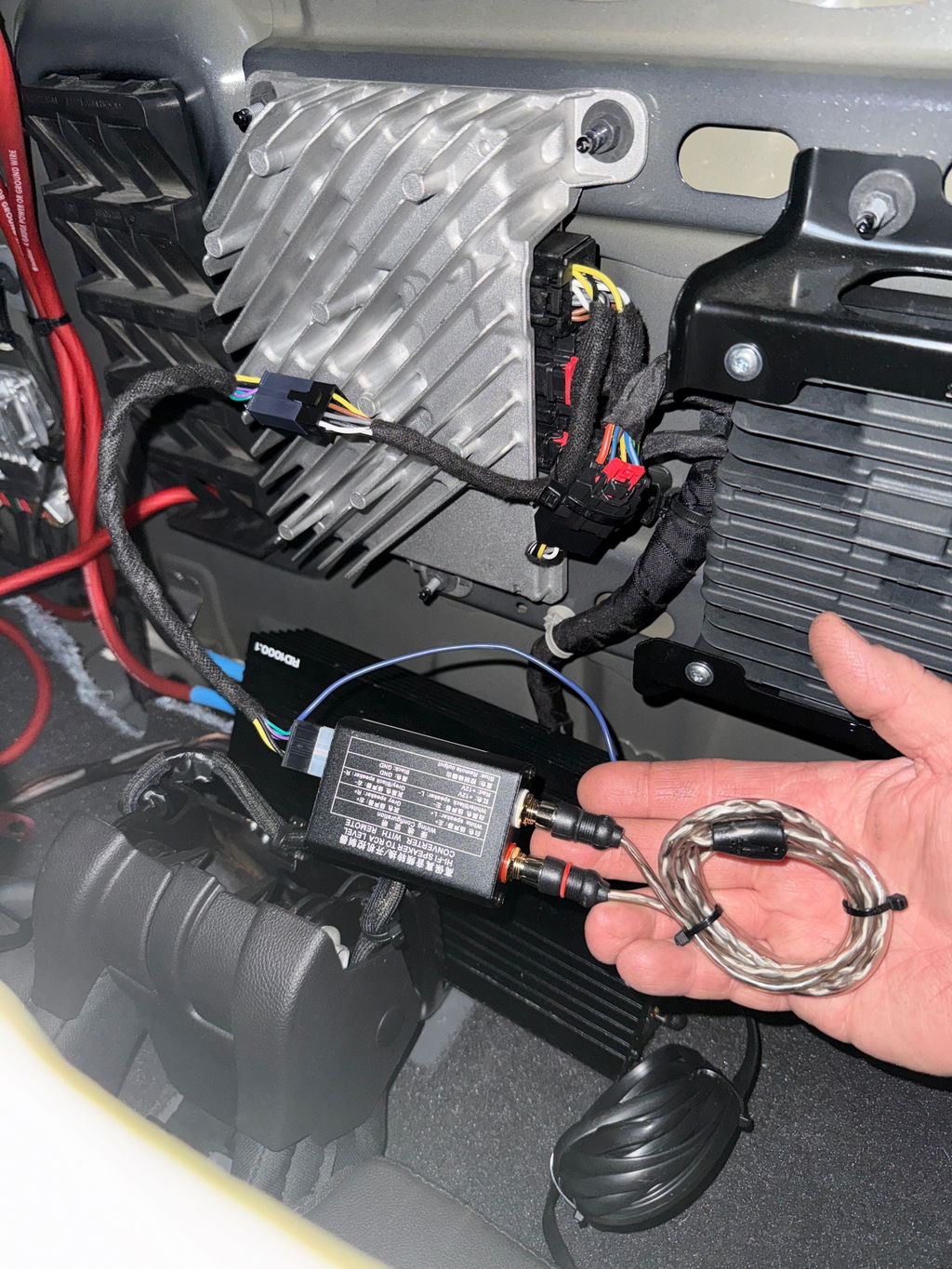

No need to cut or splice into your factory harness at all. Simply unplug your factory bose connector and install this. It even has your remote wire.
And a added bonus with 2 pieces of candy.
10 out of 10 recommended. Im confident they treat everyone like this.

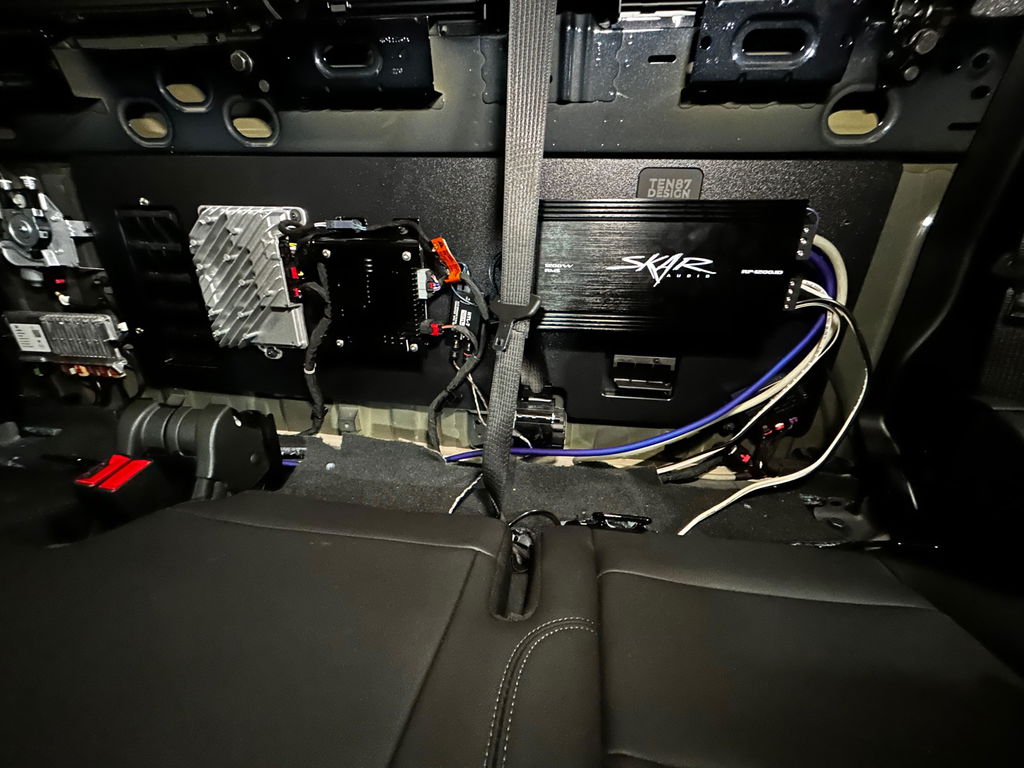

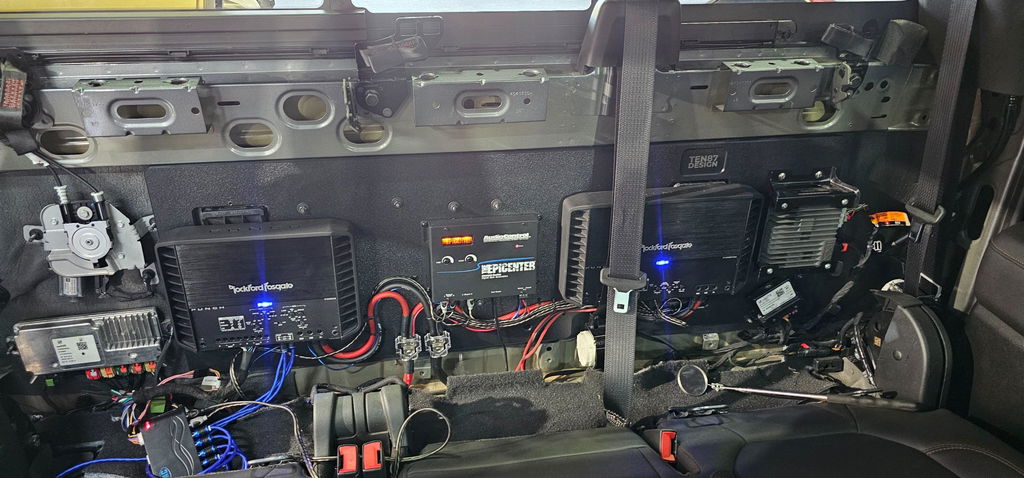

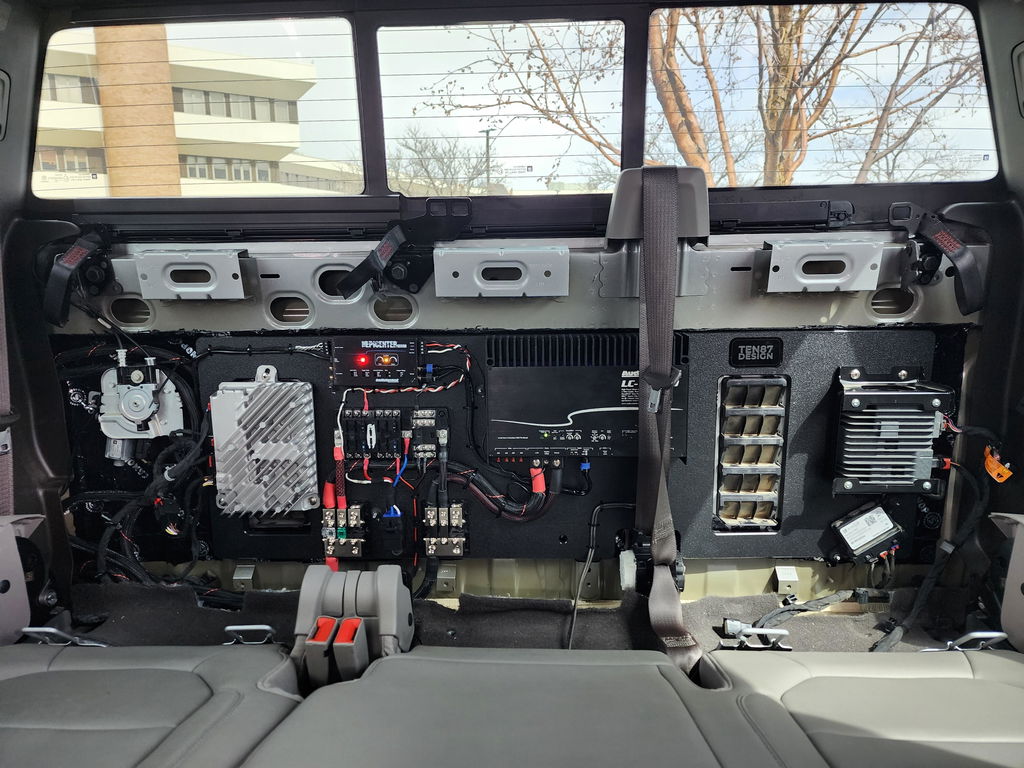

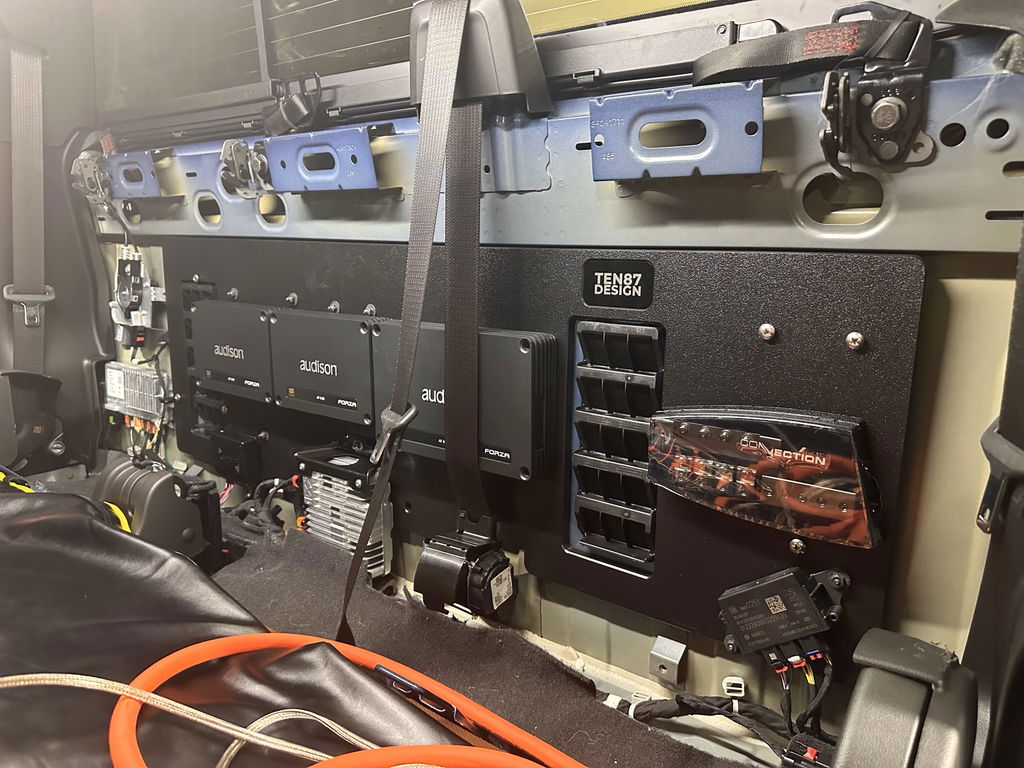

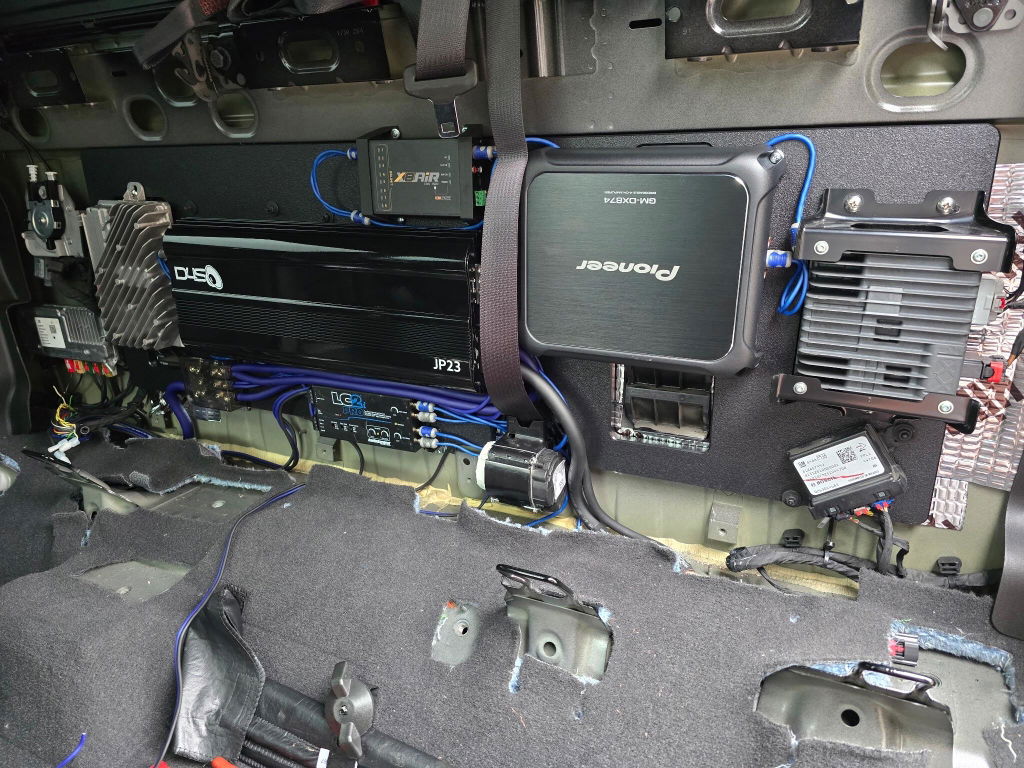

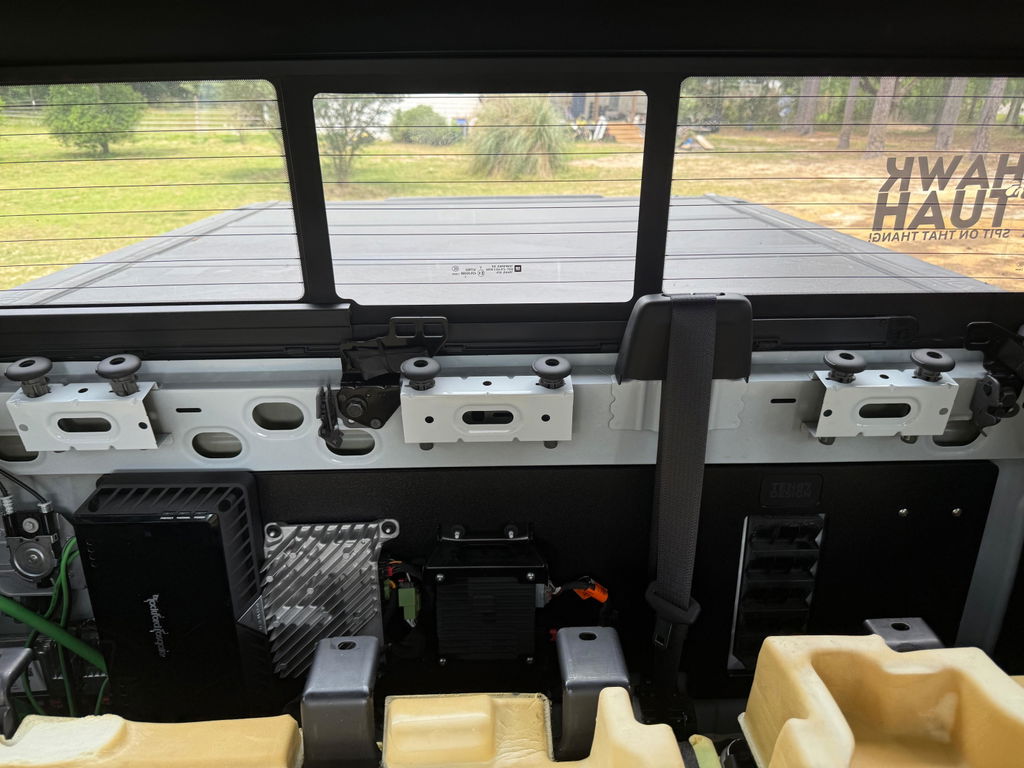

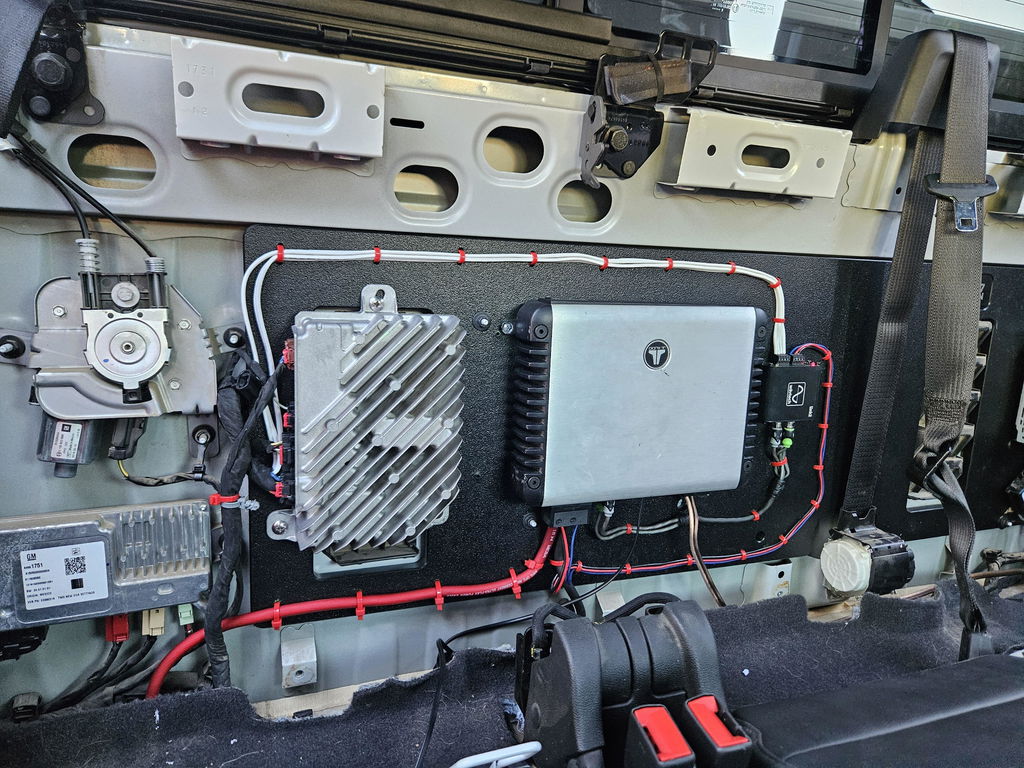

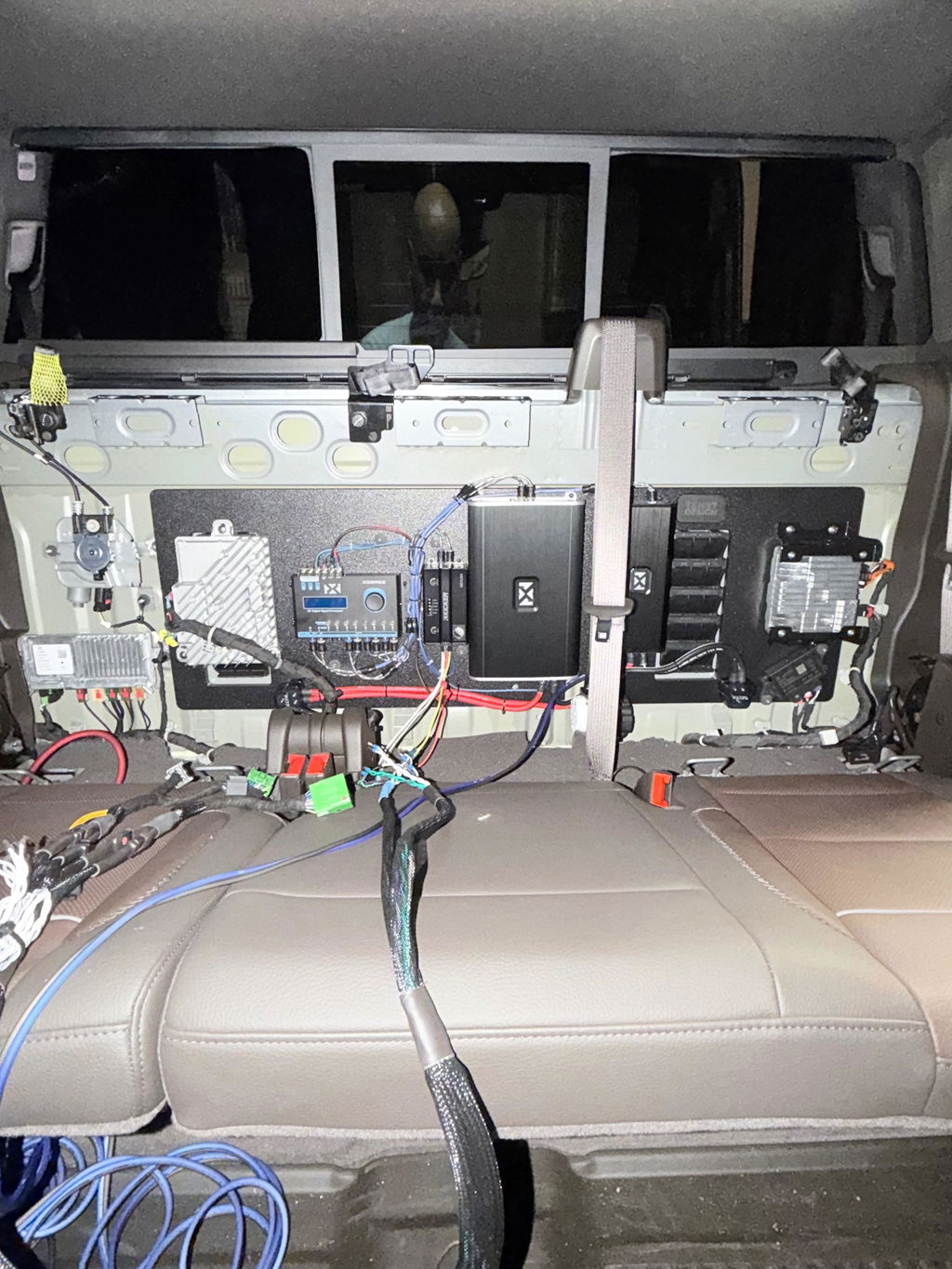

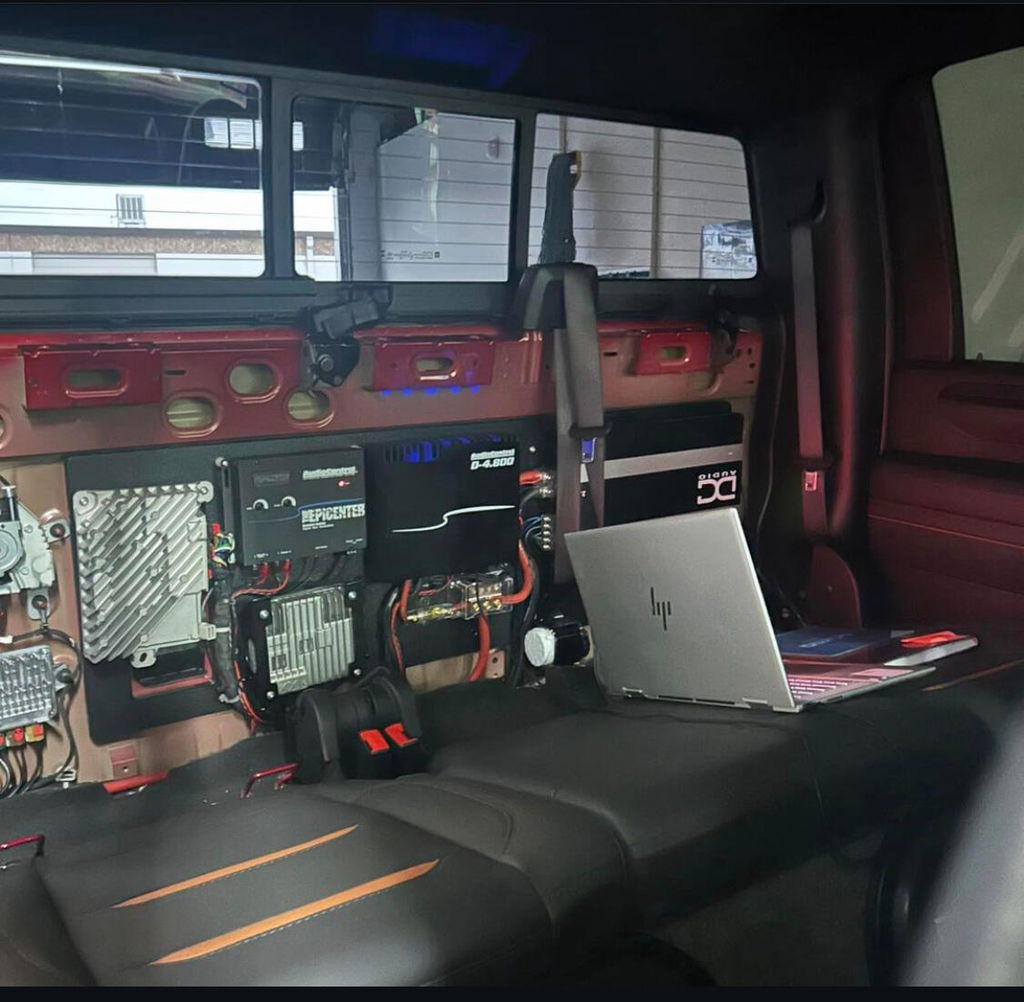

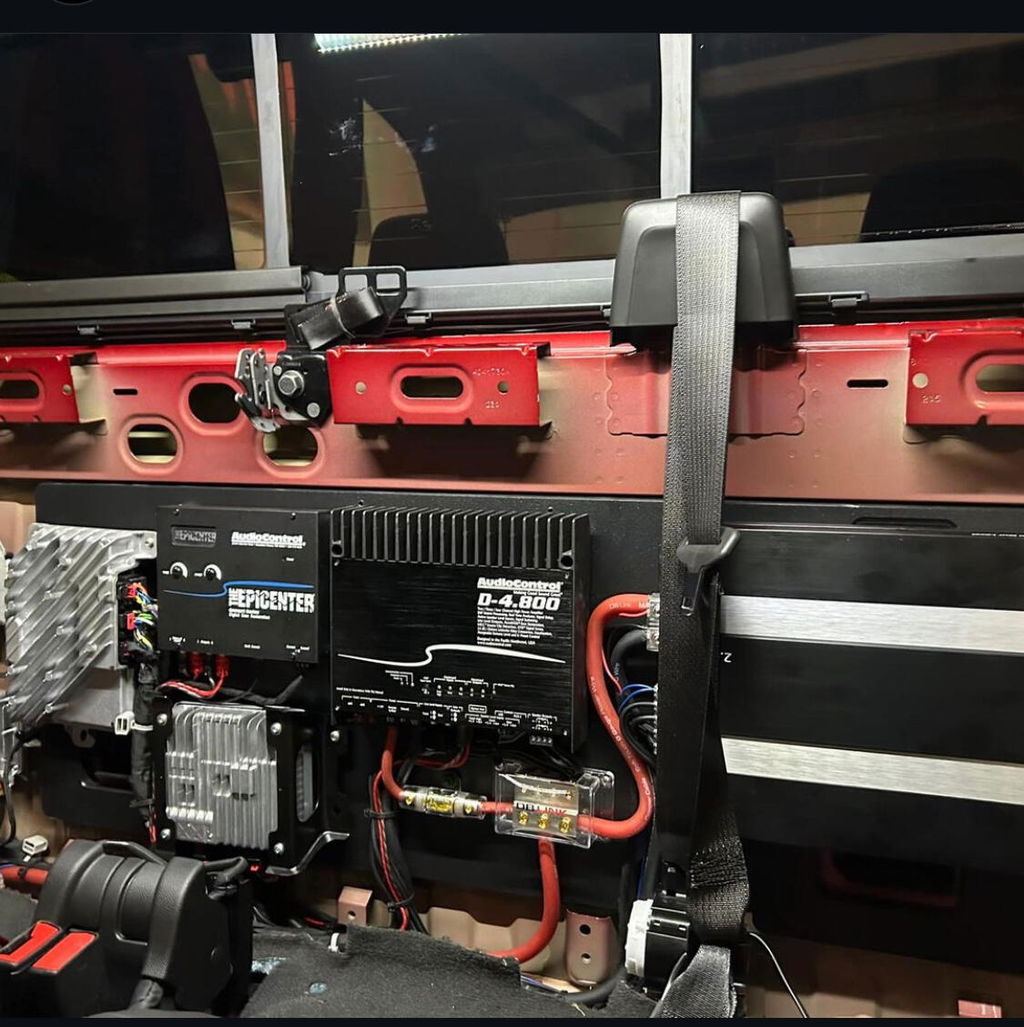

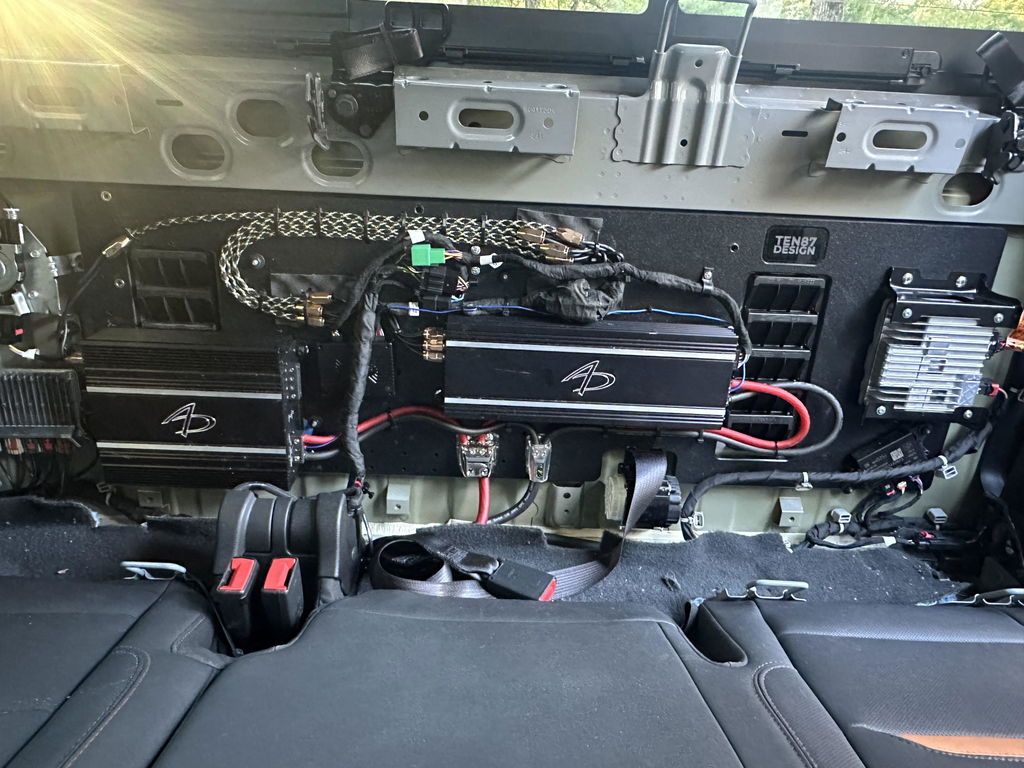

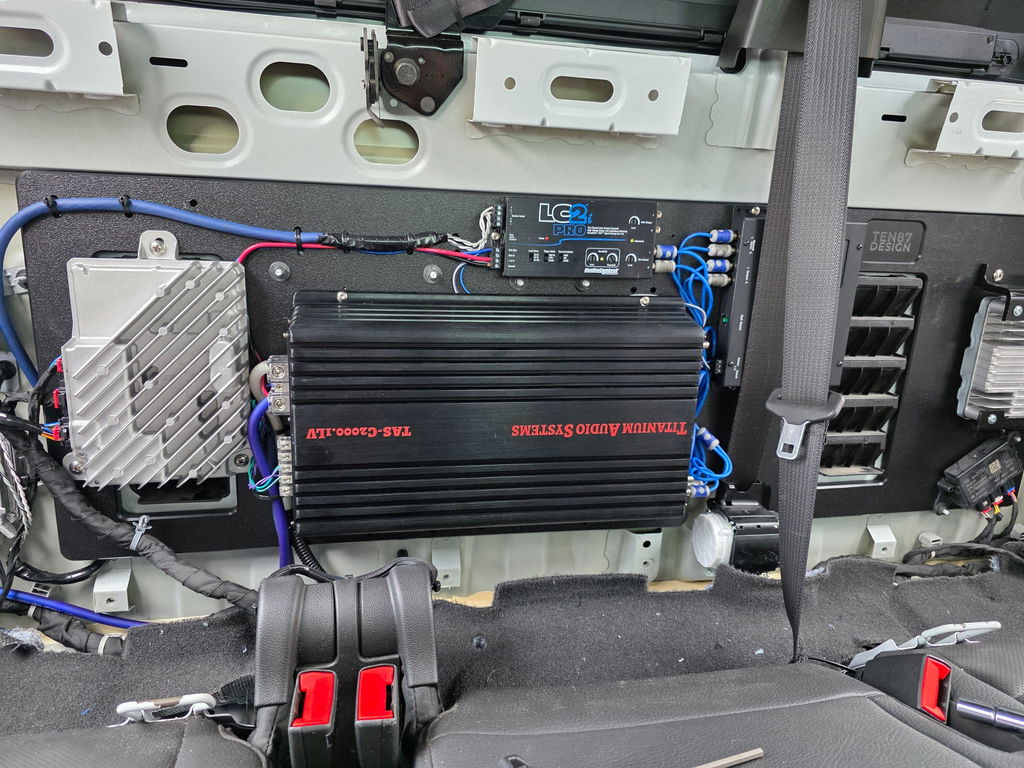

Board mounted nicely to my 21 Denali. It almost fit everything, minus the Audio Control processor, which is under the driver seat. The foam and pockets had to come off of the seat back due to the amp thickness, however it does allow for a little extra airflow with no passengers. Get rid of the Bose, the sound completely changed the ride quality. I ended up adding 2 3 1/2s to a pillars, and a second set of tweeters to the rear doors. I converted the bose sub due to location to mid bass, added 2 8"s, and 45ah's of lithium.

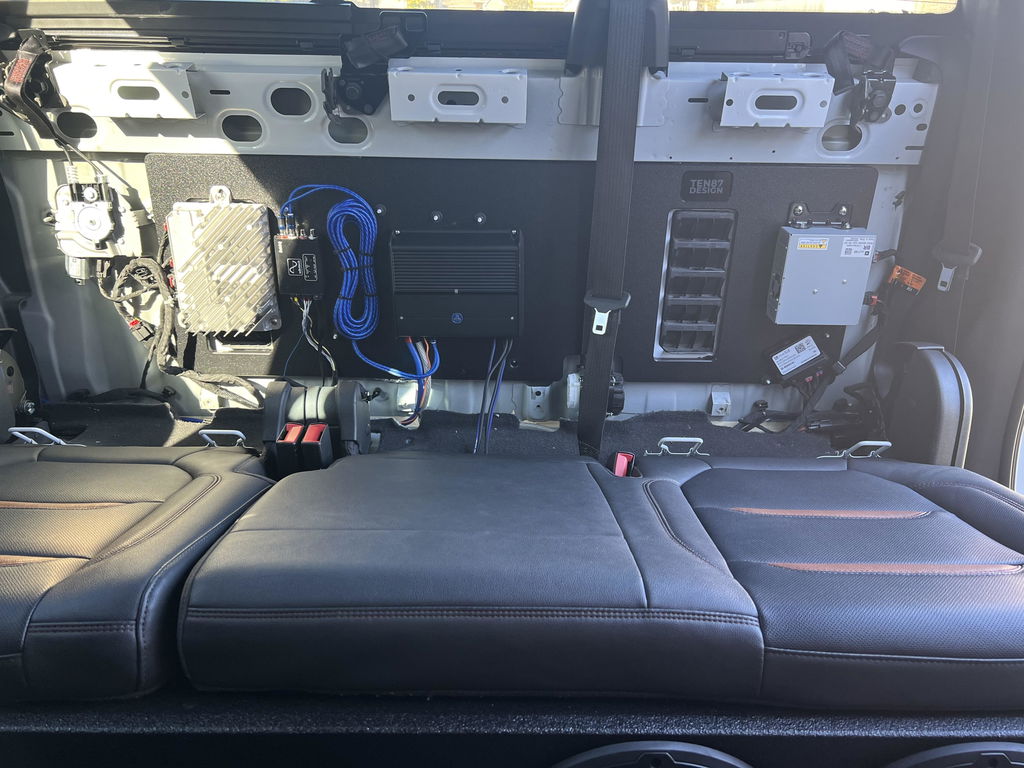

Love my sounds good stereo products. Recently installed the T harness and the amplifier rack in my 26 GMC Sierra 1500 crew cab. Took 45 minutes to install both products

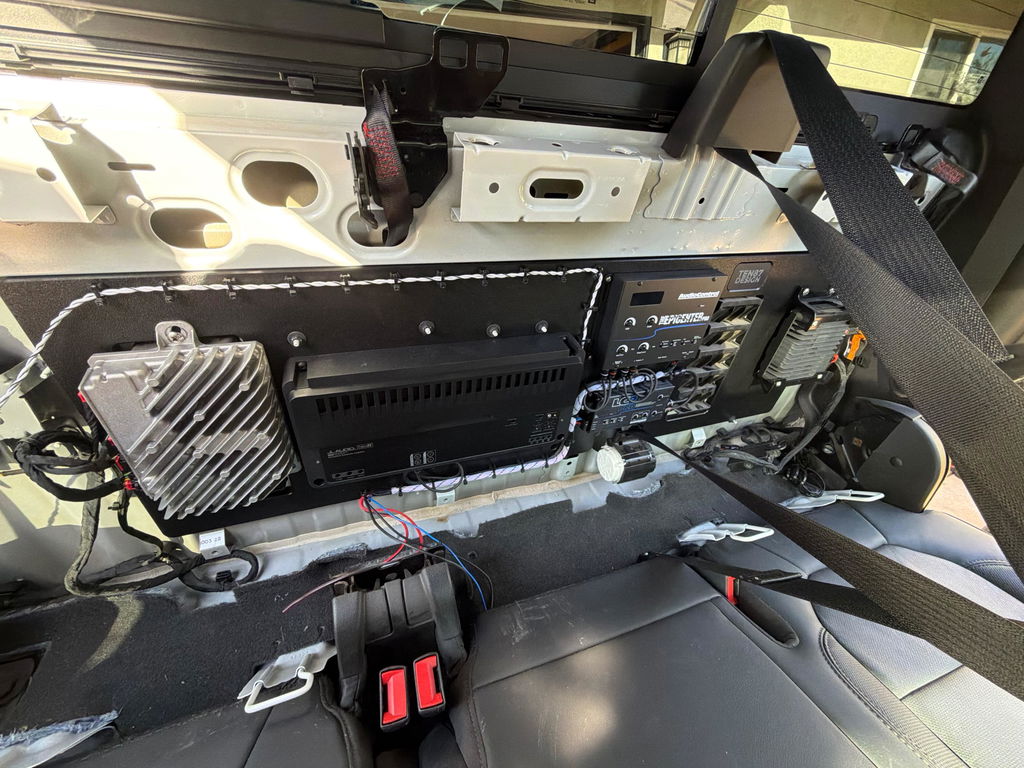

I’ve been eyeballing this Amp Rack since 2021. Usually I wouldn’t go through the trouble of mounting amplifiers because I trade vehicles after a year and a half. Well, finally got my 2025 GMC 2500 Denali fully loaded.
This is me treating myself and my truck. This rack fits solid with the pre-drilled holes directly centered onto the factory studs! Guaranteed fit!!!! Awesome job Sounds Good 🔥

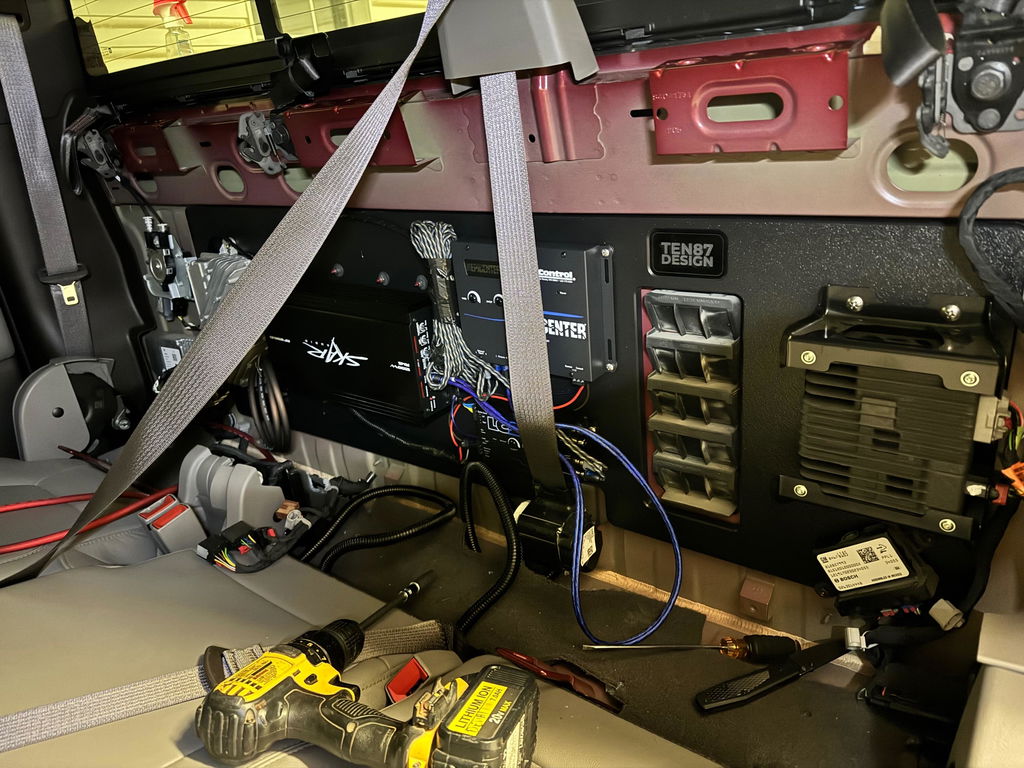

Worked out great, made mounting my amp and on components easy and effortless. Great product very durable.

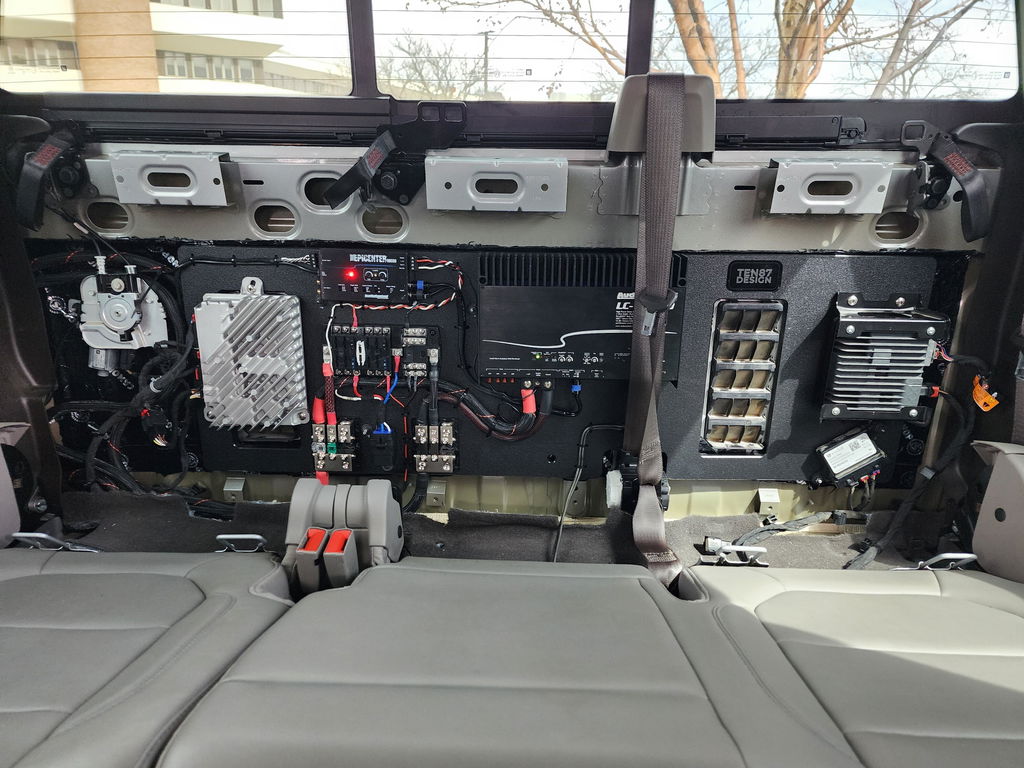

The board fit perfectly and made the install super easy! Was beyond impressed with the fit and design!

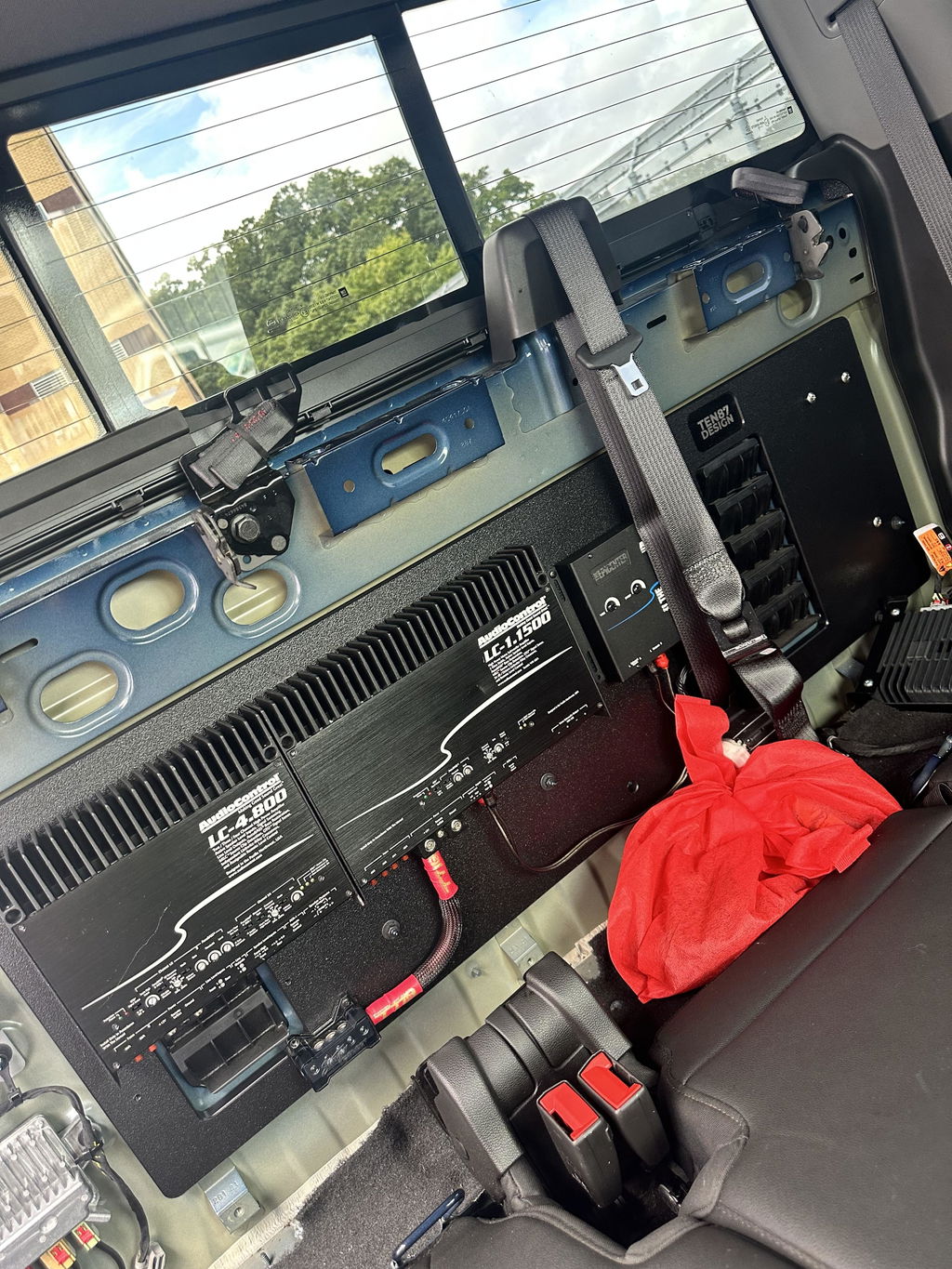

Perfect fitment on my 2021 GMC AT4 1500. Build quality is excellent, zero complaints. Would recommend for anyone that wants a clean install.
Me gusta que puedes acomodar todos tus electrónicos apropiadamente yo le puse un poco de espuma en la parte de atrás para eliminar la vibración trabaja al 100

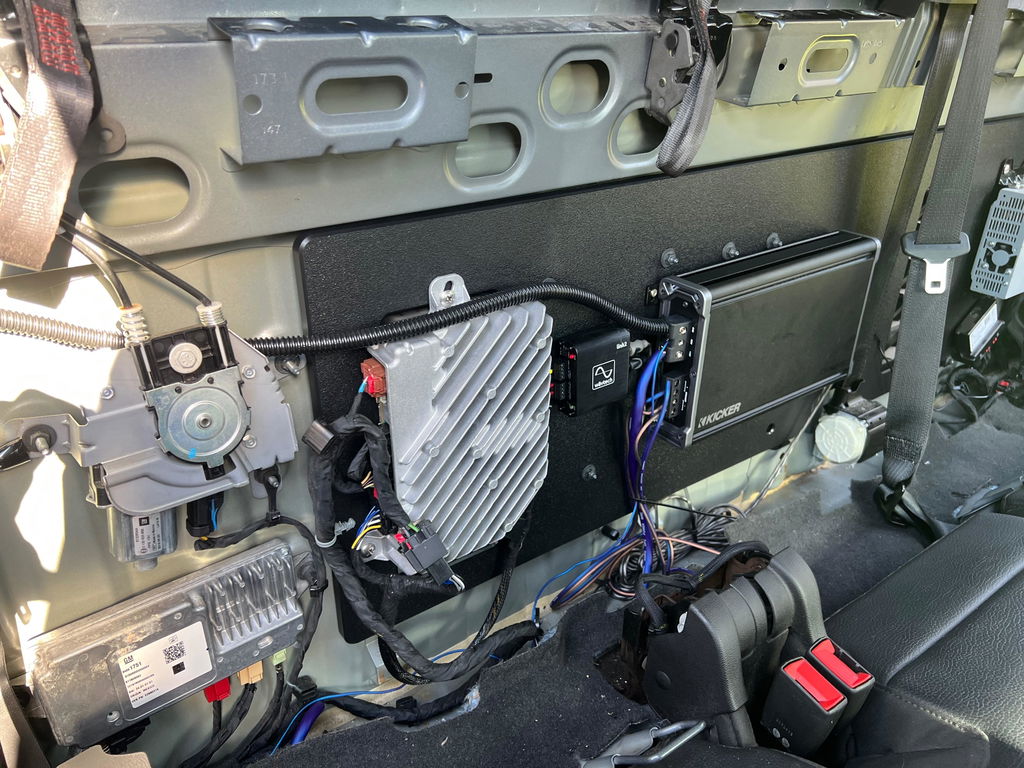

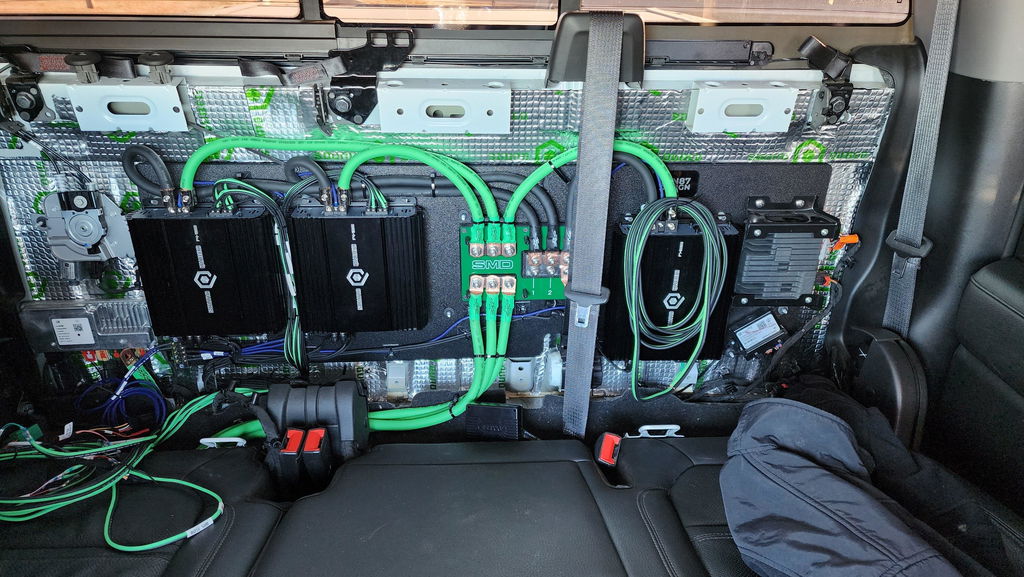

Great fit with plenty of room to play with for mounting everything. Added some Kilmat to stop the slight rattle the board had. Overall I’d buy this amp rack again.
Nice amp rack with lots of options for mounting your amps, crossovers and DSP.. Will be installing this along with my SG Sub enclosure with 4 Audiomobile subwoofers, that I have on order. Looking forward to a intense listening experience.
Fit and finish was perfect! Only thing I’d recommend is some type of sound proofing behind the rack on the back wall…there is some rattle that happens due the the bolt locations from the factory being in wierd locations causing the rack to not sit completely flush…I gave 5 stars because that’s not the fault of the amp rack or design.
I would like to purchase an amp rack,I have a 2022 Sierra HD non Bose what do you recommend?
You can use our rack, but you might need to add additional mounting points as the Non-Bose trucks lack the studs on the rear wall. Also, you might have to trim alot of foam off the back seat
Not sure what'll fit? Just call.
Tell us your truck and the amps, DSP, and distribution you're mounting — we'll spec the right size rack, or build one to order for any layout. No pressure, no upsell.
